158GW

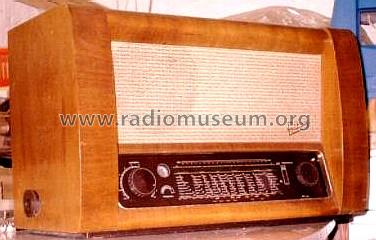

158GW; Graetz, Altena (ID = 92676) Radio

158GW; Graetz, Altena (ID = 92677) Radio

158GW; Graetz, Altena (ID = 62035) Radio

158GW; Graetz, Altena (ID = 1021356) Radio

158GW; Graetz, Altena (ID = 1021357) Radio

158GW; Graetz, Altena (ID = 1021364) Radio

158GW; Graetz, Altena (ID = 1021365) Radio

158GW; Graetz, Altena (ID = 1021366) Radio
158GW; Graetz, Altena (ID = 979617) Radio 158GW; Graetz, Altena (ID = 979616) Radio
158GW; Graetz, Altena (ID = 979615) Radio 158GW; Graetz, Altena (ID = 92271) Radio
158GW; Graetz, Altena (ID = 92272) Radio 158GW; Graetz, Altena (ID = 92421) Radio
158GW; Graetz, Altena (ID = 979614) Radio 158GW; Graetz, Altena (ID = 979618) Radio
158GW; Graetz, Altena (ID = 979619) Radio
Use red slider bar for more.
158GW; Graetz, Altena (ID = 979617) Radio
Graetz, Altena: 158GW [Radio] ID = 979617 930x662

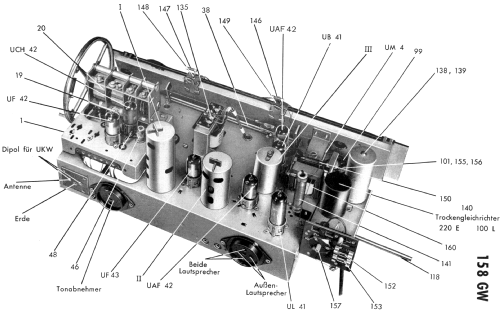

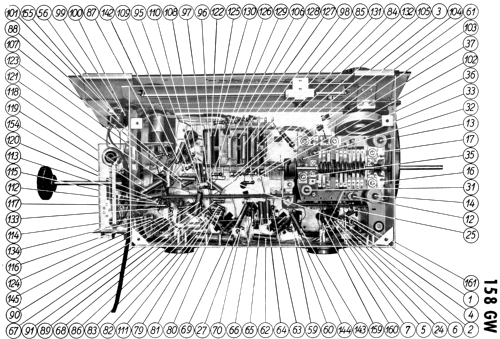

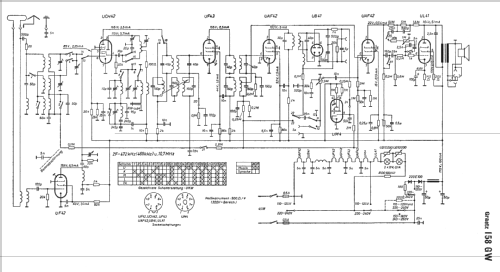

Select picture or schematic to display from thumbnails on the right and click for download.
For model 158GW, Graetz, Altena (Westfalen):
Sammlung

Country:  Germany
Manufacturer / Brand:  Graetz, Altena (Westfalen)
Year: 1951/1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: UF42 UCH42 UF43 UAF42 UM4 UB41 UAF42 UL41
Main principle Superheterodyne (common); ZF/IF 472 or 468/10700 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     7 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage AC/DC-set / 110-125; 220-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 158GW - Graetz, Altena Westfalen
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 620 x 370 x 300 mm / 24.4 x 14.6 x 11.8 inch
Notes Dieses Gerät existiert auch in der Version mit moderner UKW-Baueinheit (Graetz Nr. 6911); Umbauanleitung nach Graetz - Werksempfehlung aus dem Jahr 1957.
Net weight (2.2 lb = 1 kg) 12.3 kg / 27 lb 1.5 oz (27.093 lb)
External source of data Wiesmüller
Source of data Lange, Schaltungen der Funkindustrie
