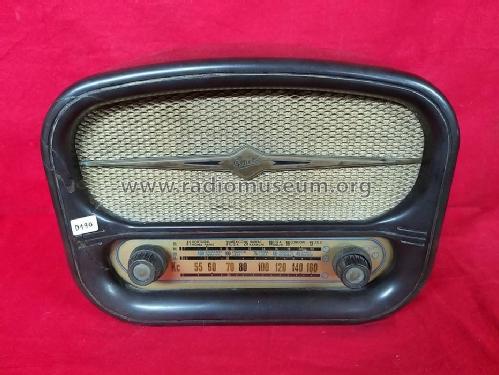

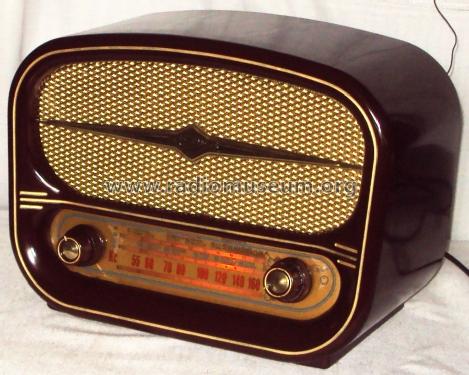

266-WT
Graetz, Altena (Westfalen)
- Country
- Germany
- Manufacturer / Brand
- Graetz, Altena (Westfalen)
- Year
- 1955 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 167994
Cortesia de proprietario
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s); Export model
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 150; 180; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: 266-WT - Graetz, Altena Westfalen
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 320 x 230 x 170 mm / 12.6 x 9.1 x 6.7 inch
- Notes
- Das Modell "Graetz WT266" hat LMK und verwendet den selben Schaltplan wie das Modell "Graetz WE266" mit MK2.
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
