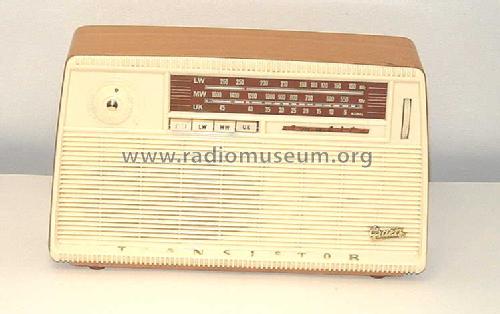

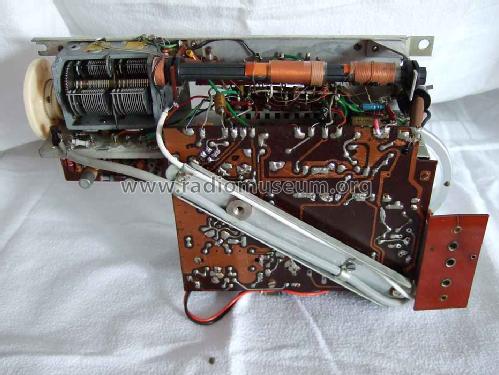

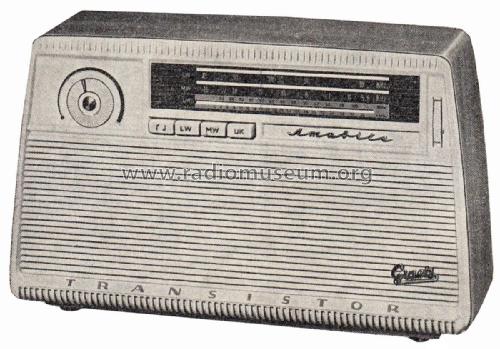

Graetz, Altena: Amabile 1052 [Radio] ID = 471655 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Amabile 1052, Graetz, Altena (Westfalen)

Country:  Germany
Manufacturer / Brand:  Graetz, Altena (Westfalen)
Year: 1961/1962 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: OC171 OC170 OC71 OC74
Main principle Super-Heterodyne (Super in general); ZF/IF 460/6750 kHz
Tuned circuits 5 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / (6 × 1,5) Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Amabile 1052 - Graetz, Altena Westfalen
Material Various materials
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 312 x 190 x 102 mm / 12.3 x 7.5 x 4 inch
Notes Transistoren: 2× OC171, 3× OC170, 2× OC71, 2× OC74; Dioden: 2× OA70, 2× OA90.
Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
Price in first year of sale 238.00 DM
Collectors' prices
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1961/62
Literature/Schematics (1) -- Original-techn. papers.
