Belcanto 8 1120 Rüster

Belcanto 8 1120; Graetz, Altena (ID = 119375) Radio

Belcanto 8 1120; Graetz, Altena (ID = 119376) Radio

Belcanto 8 1120; Graetz, Altena (ID = 119374) Radio

Belcanto 8 1120; Graetz, Altena (ID = 119373) Radio
Belcanto 8 1120; Graetz, Altena (ID = 1544734) Radio Belcanto 8 1120; Graetz, Altena (ID = 1544733) Radio
Belcanto 8 1120; Graetz, Altena (ID = 454381) Radio Belcanto 8 1120; Graetz, Altena (ID = 1544735) Radio
Belcanto 8 1120; Graetz, Altena (ID = 1544736) Radio Belcanto 8 1120; Graetz, Altena (ID = 1544737) Radio

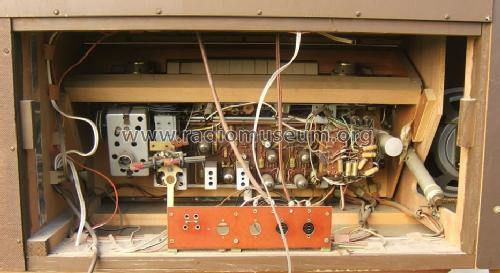

Belcanto 8 1120; Graetz, Altena (ID = 1544738) Radio Belcanto 8 1120; Graetz, Altena (ID = 1544739) Radio
Belcanto 8 1120; Graetz, Altena (ID = 1544740) Radio Belcanto 8 1120; Graetz, Altena (ID = 2026504) Radio
Use red slider bar for more.
Belcanto 8 1120; Graetz, Altena (ID = 1544734) Radio
Graetz, Altena: Belcanto 8 1120 [Radio] ID = 1544734 933x723
Select picture or schematic to display from thumbnails on the right and click for download.
For model Belcanto 8 1120 Rüster, Graetz, Altena (Westfalen)

Country:  Germany
Manufacturer / Brand:  Graetz, Altena (Westfalen)
Year: 1962/1963 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: ECC85 ECH81 EF89 EBF89 EM84 ECC83 ECC83 ECC83 ELL80 ELL80
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 220 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: Belcanto 8 1120 [Rüster] - Graetz, Altena Westfalen
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1410 x 790 x 415 mm / 55.5 x 31.1 x 16.3 inch
Notes Dioden: BA101, 2× OA79. Stereo-NF-Verstärker mit 2 Gegentakt-Endstufen je 7,5 W; abschaltbare Ferritantenne.

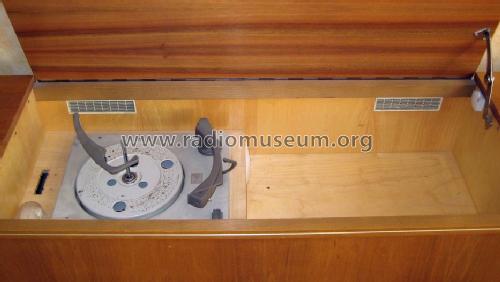

Phono-Chassis = Perpetuum-Ebner PE66.
Net weight (2.2 lb = 1 kg) 54 kg / 118 lb 15.1 oz (118.943 lb)
Price in first year of sale 1'283.00 DM
External source of data Erb
Source of data Handbuch VDRG 1962/1963
