Daisy M1033

Daisy M1033; Graetz, Altena (ID = 62000) Radio

Daisy M1033; Graetz, Altena (ID = 703111) Radio

Daisy M1033; Graetz, Altena (ID = 703113) Radio

Daisy M1033; Graetz, Altena (ID = 703114) Radio

Daisy M1033; Graetz, Altena (ID = 1862516) Radio
Daisy M1033; Graetz, Altena (ID = 27932) Radio Daisy M1033; Graetz, Altena (ID = 190491) Radio
Use red slider bar for more.

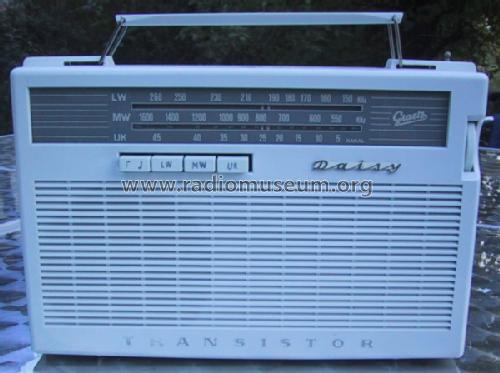

Daisy M1033; Graetz, Altena (ID = 27932) Radio
Graetz, Altena: Daisy M1033 [Radio] ID = 27932 600x448
Select picture or schematic to display from thumbnails on the right and click for download.
For model Daisy M1033, Graetz, Altena (Westfalen)

Country:  Germany
Manufacturer / Brand:  Graetz, Altena (Westfalen)
Year: 1960–1962 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: OC171 OC171 OC170 OC170 OC170 OC71 OC71 OC74 OC74 OA90 OA90 OA70 OA70
Main principle Superheterodyne (common); ZF/IF 460/6750 kHz
Tuned circuits 5 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 6× 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Daisy M1033 - Graetz, Altena Westfalen
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 257 x 167 x 68 mm / 10.1 x 6.6 x 2.7 inch
Net weight (2.2 lb = 1 kg) 2.3 kg / 5 lb 1.1 oz (5.066 lb)
Price in first year of sale 224.00 DM
Source of data HdB d.Rdf-& Ferns-GrH 1961/62 / Radiokatalog Band 1, Ernst Erb
Mentioned in Funk-Technik (FT) (19/1960, S. 685 / Neuvorstellung Messe Berlin)
