For model Joker M1035, Graetz, Altena (Westfalen)

Country:  Germany
Manufacturer / Brand:  Graetz, Altena (Westfalen)
Year: 1961/1962 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: OC171 OC171 OC170 OC170 OC170 OC71 OC75 OC74 OC74
Main principle Superheterodyne (common); ZF/IF 460/6750 kHz
Tuned circuits 7 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 5 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1 W (unknown quality)

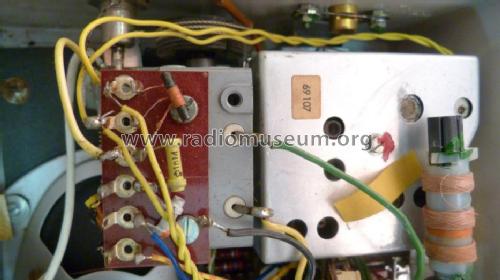

from Radiomuseum.org Model: Joker M1035 - Graetz, Altena Westfalen
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 294 x 189 x 102 mm / 11.6 x 7.4 x 4 inch
Notes Das Gerät hat ein Kunststoff-Gehäuse. Das M in der Modellbezeichnung steht für >modern<, gemeint ist eckig und Kunststoff. Verschiedene Ausführungen einheitlich mit grauer Kunststoffblende, aber übriges Gehäuse wahlweise in dunkelgrau, blau, rot oder grün. Das Chassis ist identisch mit dem des Modells Joker 1034.
Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
Price in first year of sale 314.00 DM
Source of data HdB d.Rdf-& Ferns-GrH 1961/62 / Radiokatalog Band 1, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.
