• Country
• Germany

• Manufacturer / Brand
• Graetz, Altena (Westfalen)

• Year
• 1960/1961

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 102800

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 25

• Valves / Tubes
• AW53-88

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Radio Control (+Remote Wire etc)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 6 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

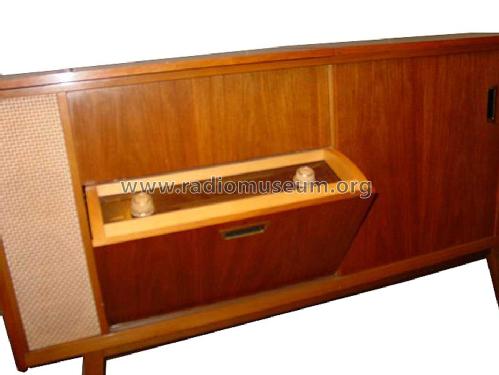

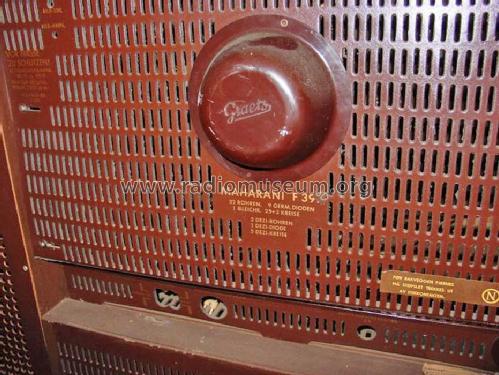

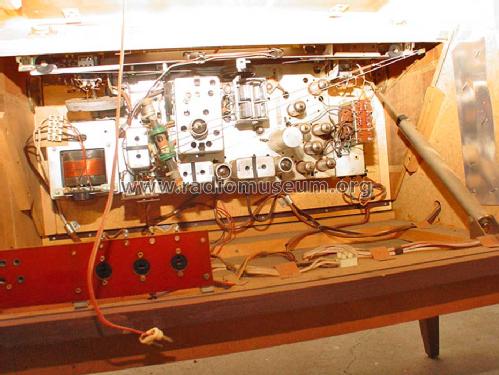

• Model: Maharani F391 - Graetz, Altena Westfalen

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 1680 x 950 x 445 mm / 66.1 x 37.4 x 17.5 inch

• Notes

• Fernseh-Chassis = Burggraf F341
  Rundfunk-Chassis = Fantasia 922
  Phono-Chassis = Perpetuum-Ebner Rex de Luxe
  Mehrpreis für eingebautes UHF-Teil: 110,- DM.

  Ersatzzeilentrafo

• Net weight (2.2 lb = 1 kg)
• 90 kg / 198 lb 3.8 oz (198.238 lb)

• Price in first year of sale
• 2,118.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1960/61

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
