• Year
  • 1960/1961
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 102755

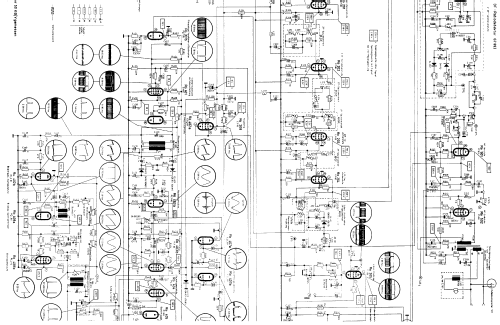

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 22
  • Main principle
  • Superheterodyne (common); ZF/IF 38900 kHz
  • Wave bands
  • Wave Bands given in the notes.
  • Details
  • Radio Control (+Remote Wire etc)
  • Power type and voltage
  • AC/DC-set / 220 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org

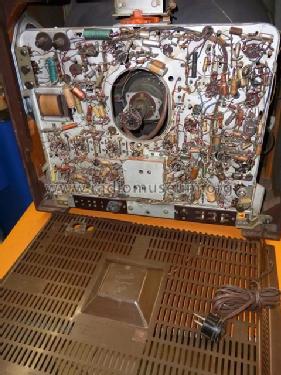

  • Model: Burggraf F341 - Graetz, Altena Westfalen
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 604 x 537 x 342 mm / 23.8 x 21.1 x 13.5 inch
  • Notes
  • VHF, UHF gegen Mehrpreis (110,- DM); anschraubbare Beine: 20,- DM.

    Ersatzzeilentrafo



  • Net weight (2.2 lb = 1 kg)
  • 32 kg / 70 lb 7.8 oz (70.485 lb)
  • Price in first year of sale
  • 978.00 DM
  • Author
  • Model page created by Bernd P. Kieck. See "Data change" for further contributors.
