Melodia 1314L

Melodia 1314L; Graetz, Altena (ID = 455627) Radio

Melodia 1314L; Graetz, Altena (ID = 455628) Radio

Melodia 1314L; Graetz, Altena (ID = 455629) Radio

Melodia 1314L; Graetz, Altena (ID = 455631) Radio

Melodia 1314L; Graetz, Altena (ID = 455632) Radio

Melodia 1314L; Graetz, Altena (ID = 455630) Radio
Melodia 1314L; Graetz, Altena (ID = 49913) Radio Melodia 1314L; Graetz, Altena (ID = 354419) Radio
Melodia 1314L; Graetz, Altena (ID = 354422) Radio Melodia 1314L; Graetz, Altena (ID = 354423) Radio

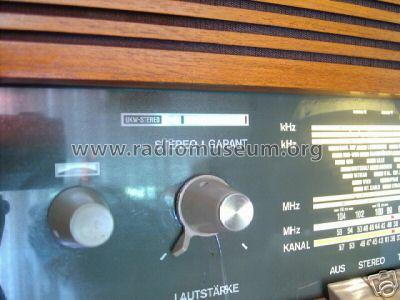

Melodia 1314L; Graetz, Altena (ID = 354424) Radio Melodia 1314L; Graetz, Altena (ID = 354425) Radio
Use red slider bar for more.
Melodia 1314L; Graetz, Altena (ID = 49913) Radio
Graetz, Altena: Melodia 1314L [Radio] ID = 49913 393x237
Select picture or schematic to display from thumbnails on the right and click for download.
For model Melodia 1314L, Graetz, Altena (Westfalen):
ebay

Country:  Germany
Manufacturer / Brand:  Graetz, Altena (Westfalen)
Year: 1964/1965 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EBF89 ECC83 EMM803 ELL80
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Melodia 1314L - Graetz, Altena Westfalen
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 620 x 300 x 220 mm / 24.4 x 11.8 x 8.7 inch
Notes Stereo-Decoder (mit AC125, 2× AC126) eingebaut, Stereo/Mono-Umschaltung von Hand; Stereo-NF-Verstärker mit 2 Endstufen je 3,5 W.
Net weight (2.2 lb = 1 kg) 11 kg / 24 lb 3.7 oz (24.229 lb)
Price in first year of sale 548.00 DM
Collectors' prices
External source of data Erb
Source of data Handbuch VDRG 1964/1965
