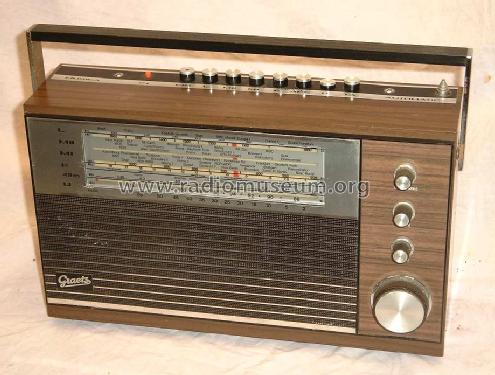

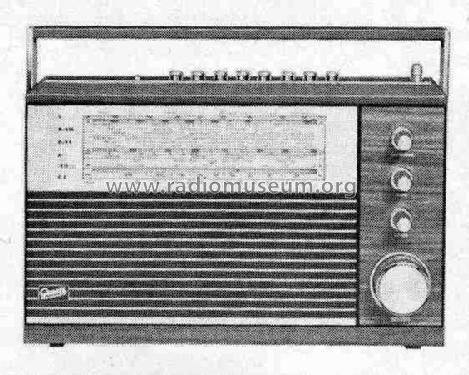

Musica 300 Automatic 52150207

Musica 300 Automatic 52150207; Graetz, Altena (ID = 72450) Radio

Musica 300 Automatic 52150207; Graetz, Altena (ID = 72451) Radio

Musica 300 Automatic 52150207; Graetz, Altena (ID = 72454) Radio

Musica 300 Automatic 52150207; Graetz, Altena (ID = 72455) Radio

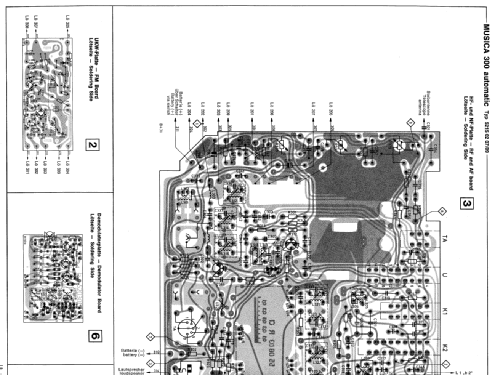

Musica 300 Automatic 52150207; Graetz, Altena (ID = 72452) Radio

Musica 300 Automatic 52150207; Graetz, Altena (ID = 72453) Radio

Musica 300 Automatic 52150207; Graetz, Altena (ID = 72456) Radio

Musica 300 Automatic 52150207; Graetz, Altena (ID = 72449) Radio

Musica 300 Automatic 52150207; Graetz, Altena (ID = 1995894) Radio

Musica 300 Automatic 52150207; Graetz, Altena (ID = 1995895) Radio
Musica 300 Automatic 52150207; Graetz, Altena (ID = 129593) Radio Musica 300 Automatic 52150207; Graetz, Altena (ID = 129594) Radio
Musica 300 Automatic 52150207; Graetz, Altena (ID = 129596) Radio Musica 300 Automatic 52150207; Graetz, Altena (ID = 91032) Radio
Musica 300 Automatic 52150207; Graetz, Altena (ID = 129595) Radio Musica 300 Automatic 52150207; Graetz, Altena (ID = 129597) Radio
Use red slider bar for more.
Musica 300 Automatic 52150207; Graetz, Altena (ID = 129593) Radio
Graetz, Altena: Musica 300 Automatic 52150207 [Radio] ID = 129593 920x696
Select picture or schematic to display from thumbnails on the right and click for download.
For model Musica 300 Automatic 52150207, Graetz, Altena (Westfalen)

Country:  Germany
Manufacturer / Brand:  Graetz, Altena (Westfalen)
Year: 1968–1972 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 15: BF125 BF125 AA143 BA111 BF125 BF125 BC252 BF121 BF121 BF125 AA112 AA112 AA143 BC252 BC172 BC253 BC172 BC252 AC178 AC179 ZE2 1N4148 1N4148
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz; 4 AF stage(s)
Tuned circuits 7 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220 / 2×4,5; 6×1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Musica 300 Automatic 52150207 - Graetz, Altena Westfalen
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 365 x 226 x 128 mm / 14.4 x 8.9 x 5 inch
Notes UKW: 87,5 - 104 MHz
KW: 6800 - 18100 kHz
49M: 5800 - 6400 kHz
MW1: 510 - 1070 kHz
MW2: 995 - 1630 kHz
LW: 146 - 285 kHz

Buchse für externe Stromversorgung.
Gehäuse mit Nussbaum-Dekor.
Siehe auch 52150209 in Schleiflack, altweiss. Preis einschließlich Netzgerät. Mittlere Betriebszeit für einen Batteriesatz ca. 120 Stunden.
Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)
Price in first year of sale 300.00 DM
Source of data Handbuch VDRG 1969/1970 / Radiokatalog Band 1, Ernst Erb

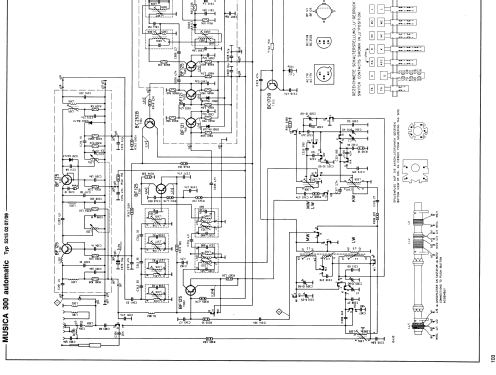

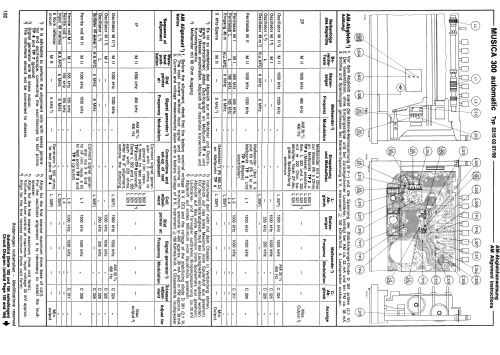

Literature/Schematics (1) -- Original-techn. papers.
