• Country
• Germany

• Manufacturer / Brand
• Graetz, Altena (Westfalen)

• Year
• 1975 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 249737

• Number of Tubes
• 5

• Valves / Tubes
• PL95 PCF80 PL504 PY88 A50-120W

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 2 W (2.5 W max.)

• Material
• Wooden case

• from Radiomuseum.org

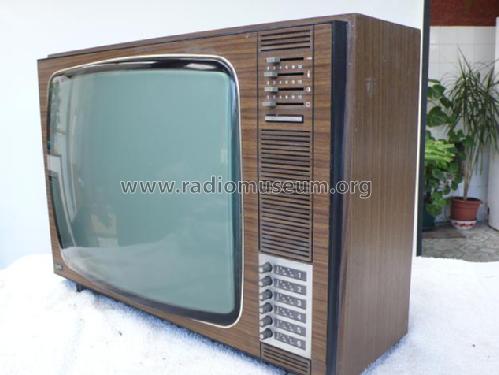

• Model: PEER electronic 2430 - Graetz, Altena Westfalen

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 592 x 420 x 330 mm / 23.3 x 16.5 x 13 inch

• Net weight (2.2 lb = 1 kg)
• 12.5 kg / 27 lb 8.5 oz (27.533 lb)

• Price in first year of sale
• 10,500.00 PTE

• Author
• Model page created by Manuel Albano Neves. See "Data change" for further contributors.
