• Country
• Germany

• Manufacturer / Brand
• Graetz, Altena (Westfalen)

• Year
• 1966–1968

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 26532

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH81 EBF89 ECC83 ELL80 EMM803

• Number of Transistors
• 7

• Semiconductors

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

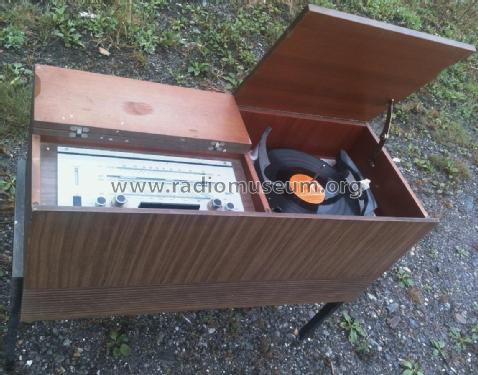

• Model: Polonaise 32F - Graetz, Altena Westfalen

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 915 x 705 x 365 mm / 36 x 27.8 x 14.4 inch

• Notes
• Transistoren: 4× AC125, BF138, 2× BF134; Dioden: 2× AA113, 7× AA112, ZF10.
  Stereo-Decoder eingebaut, Stereo-NF-Verstärker mit 2 Endstufen je 3,5 W.
  Phono-Chassis = Perpetuum-Ebner PE66.

• Net weight (2.2 lb = 1 kg)
• 26 kg / 57 lb 4.3 oz (57.269 lb)

• Price in first year of sale
• 8,195.00 ATS

• External source of data
• erb

• Source of data
• Handbuch VDRG 1966/1967
