Super 2105

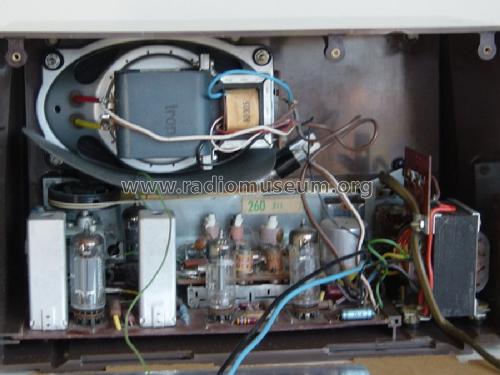

Super 2105; Graetz, Altena (ID = 184528) Radio Super 2105; Graetz, Altena (ID = 184529) Radio
Super 2105; Graetz, Altena (ID = 184530) Radio Super 2105; Graetz, Altena (ID = 805142) Radio
Use red slider bar for more.
Super 2105; Graetz, Altena (ID = 184528) Radio
Graetz, Altena: Super 2105 [Radio] ID = 184528 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super 2105, Graetz, Altena (Westfalen)

Country:  Germany
Manufacturer / Brand:  Graetz, Altena (Westfalen)
Year: 1958 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH81 EF89 EBC91 EL95
schematic requested
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 14 cm = 5.5 inch
Power out
from Radiomuseum.org Model: Super 2105 - Graetz, Altena Westfalen
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 300 x 185 x 148 mm / 11.8 x 7.3 x 5.8 inch
Notes Tropentaugliches Exportgerät.
Source of data -- Collector info (Sammler)

Model page created by Alfred Zeeb. See "Data change" for further contributors.
