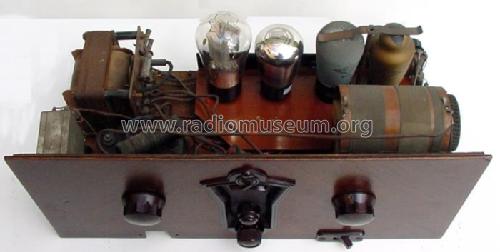

3137W; Elektro-Watt GmbH, (ID = 243857) Radio 3137W; Elektro-Watt GmbH, (ID = 243860) Radio
3137W; Elektro-Watt GmbH, (ID = 1740297) Radio
Use red slider bar for more.
3137W; Elektro-Watt GmbH, (ID = 243851) Radio
Elektro-Watt GmbH,: 3137W [Radio] ID = 243851 700x449
Select picture or schematic to display from thumbnails on the right and click for download.
For model 3137W, Elektro-Watt GmbH, Fabrik hochwertiger Rundfunkapparate; Dresden (s.auch Watt)

Country:  Germany
Manufacturer / Brand:  Elektro-Watt GmbH, Fabrik hochwertiger Rundfunkapparate; Dresden (s.auch Watt)
Year: 1931/1932 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: REN904 REN904 RE134 RGN504
Main principle TRF without regeneration
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: 3137W - Elektro-Watt GmbH, Fabrik
Material Wooden case
Notes

Im Radio-Katalog 1931/32 der Firma "Anode" ist dieses Gerät schon ausschließlich unter "Graetz" gelistet

Price in first year of sale 125.00 RM
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Röhren in FS-Bestückungstabellen
