Graetzor 40W

Graetzor 40W; Graetz Radio, Berlin (ID = 14202) Radio

Graetzor 40W; Graetz Radio, Berlin (ID = 14203) Radio

Graetzor 40W; Graetz Radio, Berlin (ID = 337652) Radio

Graetzor 40W; Graetz Radio, Berlin (ID = 2087914) Radio

Graetzor 40W; Graetz Radio, Berlin (ID = 2508950) Radio
Graetzor 40W; Graetz Radio, Berlin (ID = 1403336) Radio Graetzor 40W; Graetz Radio, Berlin (ID = 61470) Radio
Graetzor 40W; Graetz Radio, Berlin (ID = 366332) Radio Graetzor 40W; Graetz Radio, Berlin (ID = 1403329) Radio
Graetzor 40W; Graetz Radio, Berlin (ID = 1403330) Radio Graetzor 40W; Graetz Radio, Berlin (ID = 1403331) Radio
Graetzor 40W; Graetz Radio, Berlin (ID = 1403332) Radio Graetzor 40W; Graetz Radio, Berlin (ID = 1403333) Radio
Graetzor 40W; Graetz Radio, Berlin (ID = 1403334) Radio Graetzor 40W; Graetz Radio, Berlin (ID = 1403335) Radio
Use red slider bar for more.

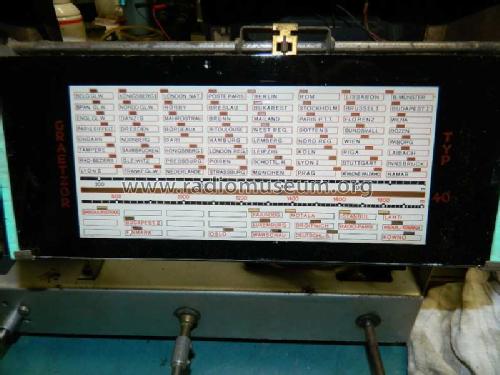

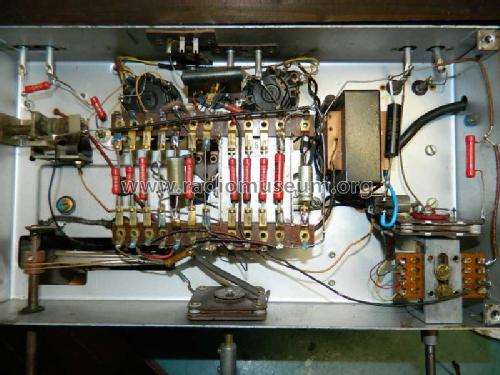

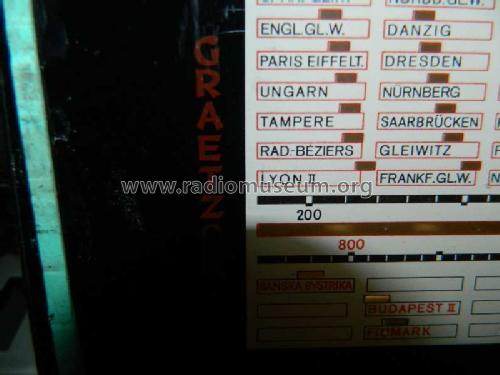

Graetzor 40W; Graetz Radio, Berlin (ID = 1403336) Radio
Graetz Radio, Berlin: Graetzor 40W [Radio] ID = 1403336 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Graetzor 40W, Graetz Radio, Berlin Treptow SO36, Vorkrieg

Country:  Germany
Manufacturer / Brand:  Graetz Radio, Berlin Treptow SO36, Vorkrieg
Year: 1936/1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: AF7 AL4 AZ1
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: Graetzor 40W - Graetz Radio, Berlin Treptow
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 520 x 310 x 250 mm / 20.5 x 12.2 x 9.8 inch
Notes Ch=43W. Zur Reduzierung der Leistungsaufnahme kann eine Sparschaltung eingeschaltet werden.
Net weight (2.2 lb = 1 kg) 11.8 kg / 25 lb 15.9 oz (25.991 lb)
Price in first year of sale 160.00 RM
Source of data HandB.d.d.Rundfunk-Handels 1936/37 / Radiokatalog Band 2, Ernst Erb

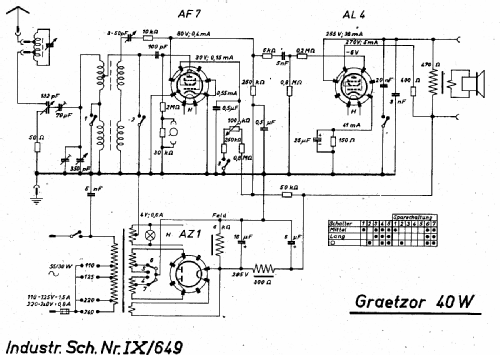

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung


All listed radios etc. from Graetz Radio, Berlin Treptow SO36, Vorkrieg
Here you find 75 models, 67 with images and 60 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
