• Year
  • 1933
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 68570
    • alternative name: Radiofotos || Société des lampes Fotos

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superhet with RF-stage; ZF/IF 135 kHz
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 130; 220; 240 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 2807 - Grammont Radiofotos, Fotos;

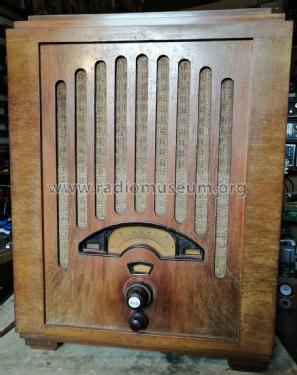

  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Dimensions (WHD)
  • 400 x 550 x 320 mm / 15.7 x 21.7 x 12.6 inch
  • Notes
  • 2 gammes d'ondes, changement par bouton à 5 positions : PU, PO locaux, PO, GO, GO locaux. Anti-fading. Éliminateur de parasites. Contrôle de tonalité. Prise phono à 3 sensibilités.

    Modèle spécial pour 25 ou 42 périodes, supplément 105 Fr.

    Il y a une erreur de frappe dans la Schémathèque : le numéro du modèle est erroné - le dernier chiffre est le nombre de tubes, et l'appareil a 7, pas 3 tubes.

  • Price in first year of sale
  • 1,995.00 FRF
  • External source of data
  • Serge Laffont/Martin Renoth
  • Mentioned in
  • - - Manufacturers Literature (Description et Mode d'Utilisation)
