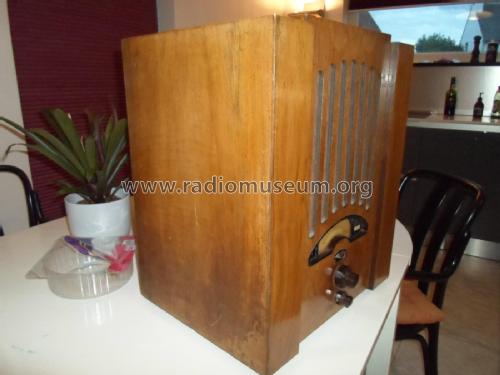

For model 57, Grammont (Radiofotos, Fotos); Paris, Malakoff

Country:  France
Manufacturer / Brand:  Grammont (Radiofotos, Fotos); Paris, Malakoff
alternative name

Radiofotos || Société des lampes Fotos
Year: 1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 58 58 56 58 2B7 47 80
Main principle Superheterodyne (common); ZF/IF 135 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 57 - Grammont Radiofotos, Fotos;
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
External source of data Serge Laffont/Martin Renoth
