For model 616, Grammont (Radiofotos, Fotos); Paris, Malakoff

Country:  France
Manufacturer / Brand:  Grammont (Radiofotos, Fotos); Paris, Malakoff
alternative name

Radiofotos || Société des lampes Fotos
Year: 1936 Category: Broadcast Receiver - or past WW2 Tuner

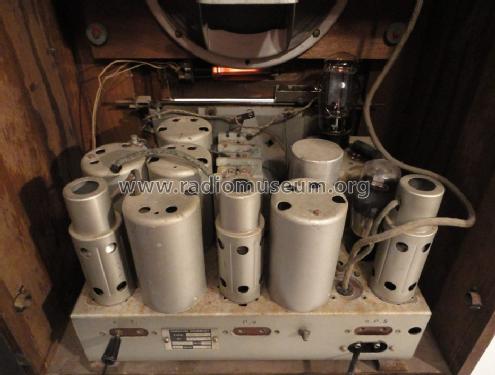

Valves / Tubes 6: 6K7G 6A8G 6K7G 6Q7G Neon_Indicator 6F6G 5Y3G
Main principle Superhet with RF-stage; ZF/IF 135 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details Visual Tuning Indicator pre Eye

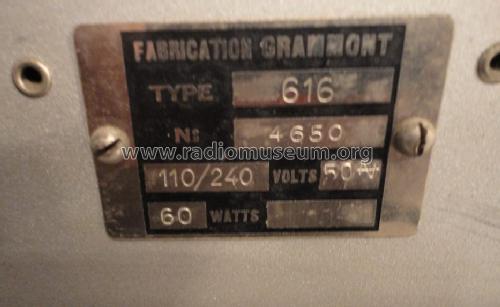

Power type and voltage Alternating Current supply (AC) / 110; 130; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch
Power out 2.6 W (unknown quality)
from Radiomuseum.org Model: 616 - Grammont Radiofotos, Fotos;
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 430 x 500 x 270 mm / 16.9 x 19.7 x 10.6 inch
Notes

3 gammes d'ondes : OC de 21 à 54 m, PO de 200 à 570 m, GO de 850 à 2000 m. Antifading, sélectivité variable, réglage silencieux. Indicateur visuel d'accord. Contrôle de tonalité. Lampes cadran : 9 x 7 V / 0.3 A.

Ébénisterie en ronce de noyer et ébène de macassar, avec baguettes métal.

Modèle pour 25 périodes sur demande, supplément 50 Fr.
Prix en 1937 : 2130 Fr.

Équipé avec lampes Fotos "G".

L'année 1938 specifie dans la Schématheque n'est pas l'année de parution.

Net weight (2.2 lb = 1 kg) 15 kg / 33 lb 0.6 oz (33.04 lb)
Price in first year of sale 1'850.00 FRF
External source of data Serge Laffont/Martin Renoth

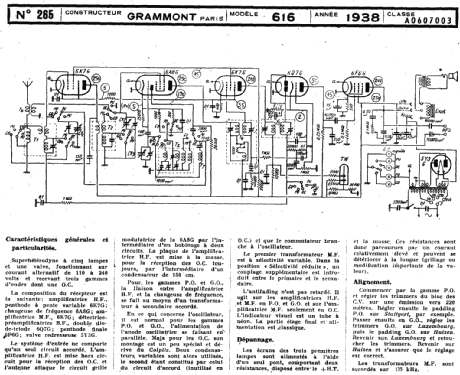

Circuit diagram reference La Documentation du Revendeur - Radio
Mentioned in -- Original prospect or advert (Dépliant Grammont)
Literature/Schematics (1) Schémathèque Toute la Radio (STR) (No. 265)


All listed radios etc. from Grammont (Radiofotos, Fotos); Paris, Malakoff
Here you find 152 models, 106 with images and 63 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
