AM69

AM69; Grammont Radiofotos, (ID = 1512876) Radio AM69; Grammont Radiofotos, (ID = 1512879) Radio
AM69; Grammont Radiofotos, (ID = 1512881) Radio AM69; Grammont Radiofotos, (ID = 1512882) Radio
Use red slider bar for more.

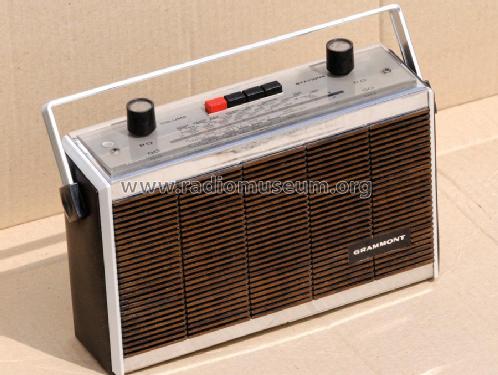

AM69; Grammont Radiofotos, (ID = 1512876) Radio
Grammont Radiofotos,: AM69 [Radio] ID = 1512876 900x677
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM69, Grammont (Radiofotos, Fotos); Paris, Malakoff

Country:  France
Manufacturer / Brand:  Grammont (Radiofotos, Fotos); Paris, Malakoff
alternative name

Radiofotos || Société des lampes Fotos
Year: 1969 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: 2R13-5 2R13-5 2-32A 2-32B AC121 AC121 AF126
Main principle Superheterodyne (common)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 2 x 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: AM69 - Grammont Radiofotos, Fotos;
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 250 x 170 x 70 mm / 9.8 x 6.7 x 2.8 inch
Notes

2 gammes PO GO. Clavier 4 touches. Prise antenne auto.

Équivalent au Ribet-Desjardins AM69.

Net weight (2.2 lb = 1 kg) 1 kg / 2 lb 3.2 oz (2.203 lb)
Mentioned in Le grand livre de la TSF (Doctsf Ref 30224)

Model page created by Jean-Louis Buton. See "Data change" for further contributors.
