- Country
- France
- Manufacturer / Brand
- Grammont (Radiofotos, Fotos); Paris, Malakoff
- Year
- 1960
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 301870
-
- alternative name: Radiofotos || Société des lampes Fotos
Documentation service

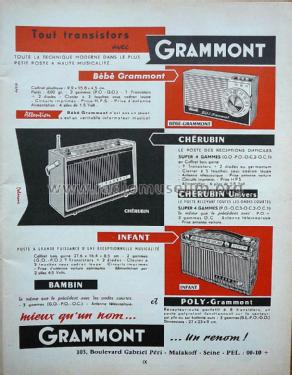

Publicité dans "Toute la radio" Juin 1960
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 477 kHz
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Dry Batteries / 2 x 4.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Infant - Grammont Radiofotos, Fotos;
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 276 x 164 x 85 mm / 10.9 x 6.5 x 3.3 inch
- Notes
-
2 gammes d'ondes : PO de 185 à 570 m, GO de 1000 a 1950 m. Cadre ferrite de 20 cm. Prise antenne-auto communtée. Montage en circuits imprimés.
Ce modèle existe apparemment avec 3 et avec 4 touches.
- Net weight (2.2 lb = 1 kg)
- 2 kg / 4 lb 6.5 oz (4.405 lb)
- Mentioned in
- -- Original-techn. papers.
- Literature/Schematics (1)
- -- Original prospect or advert (Toute la Radio, Juin 1960)
