Poly-Grammont
Grammont (Radiofotos, Fotos); Paris, Malakoff
- Country
- France
- Manufacturer / Brand
- Grammont (Radiofotos, Fotos); Paris, Malakoff
- Year
- 1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 240091
-
- alternative name: Radiofotos || Société des lampes Fotos
- Number of Transistors
- 8
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Batteries / addl. power jack / 4 x 1,5 / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
- Power out
- 0.38 W (unknown quality)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Poly-Grammont - Grammont Radiofotos, Fotos;
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 270 x 230 x 90 mm / 10.6 x 9.1 x 3.5 inch
- Notes
-

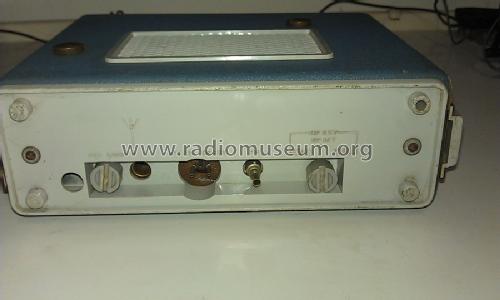

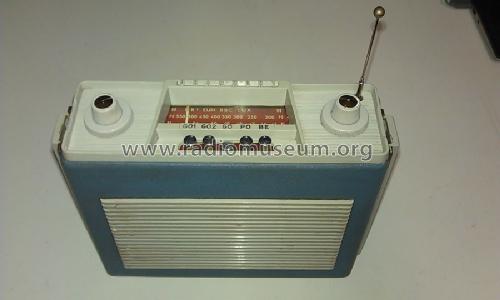

3 gammes d'ondes: PO 185 à 575 m, GO 1130 à 2000 m, BE 5,85 à 6,72 Mc/s. 2 stations préréglées en GO (France I et Europe I). Clavier 5 touches. Antenne télescopique pour bande étalée. Cadre ferrite. Dispositif élargisseur de bande par diode au germanium. Prises antenne auto, HP extérieur 4 ohms, pick-up.
Alimentation par piles intérieures ou batterie du véhicule.
En option: coffret alimentation secteur (65.034) qui forme support pour le récepteur, filtre anti-parasites (25.681) pour utilisation sur véhicule.
- Net weight (2.2 lb = 1 kg)
- 2.960 kg / 6 lb 8.3 oz (6.52 lb)
- Price in first year of sale
- 49,750.00 FRF
- Mentioned in
- -- Original-techn. papers.
- Literature/Schematics (1)
- - - Manufacturers Literature (Tarif 20.03.1959)
- Author
- Model page created by Kees Reedijk. See "Data change" for further contributors.
