• Country
• France

• Manufacturer / Brand
• Grammont (Radiofotos, Fotos); Paris, Malakoff

• Year
• 1959 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 130118

• • alternative name: Radiofotos || Société des lampes Fotos

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCH81 UBF89 UF89 UL84 UY92

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-130; 220-245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11.5 cm = 4.5 inch

• Material
• Wooden case

• from Radiomuseum.org

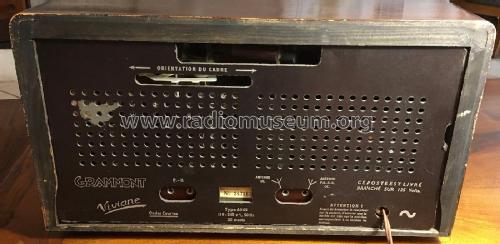

• Model: Viviane 6045 - Grammont Radiofotos, Fotos;

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 390 x 225 x 195 mm / 15.4 x 8.9 x 7.7 inch

• Notes

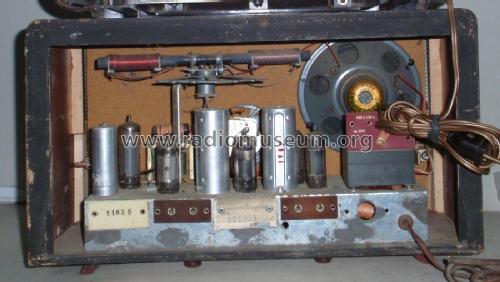

• Drehbare Ferritantenne. KW ca.35 -52 m ( "BE" ) Leistungsaufnahme 35 W.

  Équivalent au Sonneclair Picardie.

• Net weight (2.2 lb = 1 kg)
• 4.4 kg / 9 lb 11.1 oz (9.692 lb)

• Author
• Model page created by Ottmar Lauth. See "Data change" for further contributors.
