• Country
• United States of America (USA)

• Manufacturer / Brand
• Granco Products, Inc.; Long Island City (NY)

• Year
• 1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 68895

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12BA6 12AT7 12BA6 12BA6 19T8 35C5

• Main principle
• Superhet with RF-stage

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• AC/DC-set / 115 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: FM-610U - Granco Products, Inc.; Long

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 7.5 x 5.1 x 5.5 inch / 191 x 130 x 140 mm

• Notes

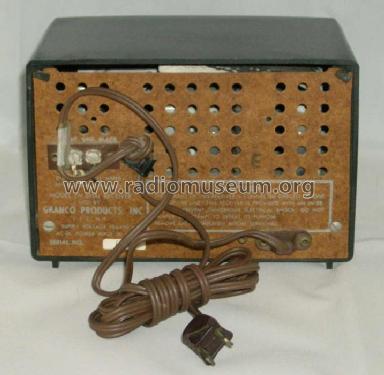

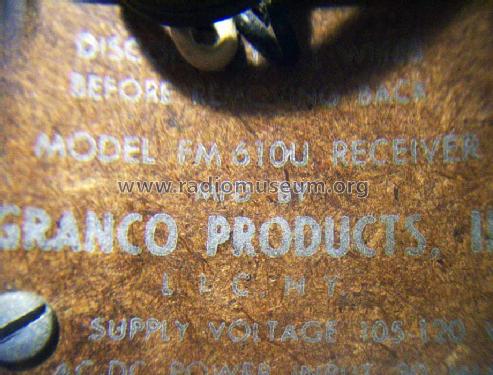

• The Photofact folder from July 1955 shows as name only Granco 610 and the sticker in the set can also be mistaken for model 610 but a closed look unveils that it's name is 610U - and the back wall shows clearly FM 610U. See photo. There is also the AC model T610 listed by Photofact set 309 folder 8 date 3-56.

• External source of data
• Konrad Birkner

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date July 1955, Set 283, folder 6)

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
