- Country
- United States of America (USA)
- Manufacturer / Brand
- Grebe, A.H. & Co.; Richmond Hill (NY)
- Year
- 1937/1938 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 300091
-
- Brand: Synchrophase
Photo used by permission of owner.
Photo used by permission of owner.
Photo used by permission of owner.
Photo used by permission of owner.
Photo used by permission of owner.
Photo used by permission of owner.
Photo used by permission of owner.
Photo used by permission of owner.
- Number of Tubes
- 16
- Main principle
- Superhet with RF-stage; ZF/IF 456 kHz; 3 AF stage(s)
- Tuned circuits
- 8 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 3016 - Grebe, A.H. & Co.; Richmond
- Shape
- Console with any shape - in general
- Notes
-
The Grebe 3016 is a 16-tube, 3-band radio with chassis manufactured by Garod. It receives the Broadcast band from 540-1735 kHz, Shortwave2 from 2.3 to 7.5 MHz, and Shortwave1 from 7.3 to 22 MHz.

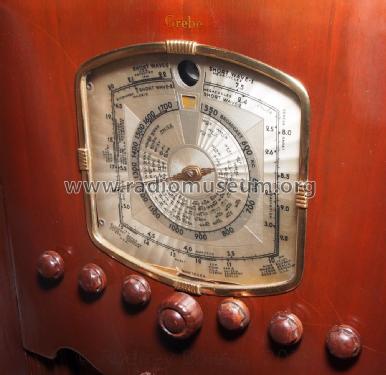

The functions of the 7 knobs, from left to right, are 1) Tone, 2) Sensitivity / AFC On-Off, 3) Band switch, 4) Tuning, 5) Fidelity-Selectivity, 6) Phono-Radio, and 7) Power On-Off / Volume. The receiver features dual IF amplifiers, Automatic Frequency Control by means of a 6H6 discriminator and 6K7 control, and a 6K7 driver for the 6U5 tuning eye. The speaker is a Rola K-12.
See schematic also at Garod 3016.
- Literature/Schematics (1)
- Rider's Perpetual, Volume 9 = 1938 and before (Vol. 9, pgs Garod 9-23 to 9-24)
- Author
- Model page created by Rodney Boleyn. See "Data change" for further contributors.
