For model CR2, Grebe, A.H. & Co.; Richmond Hill (NY):

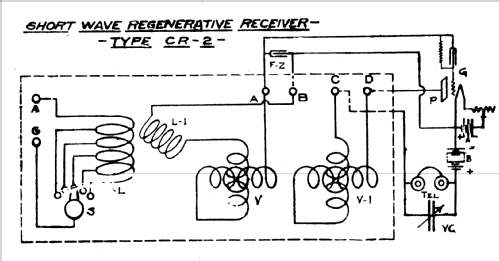

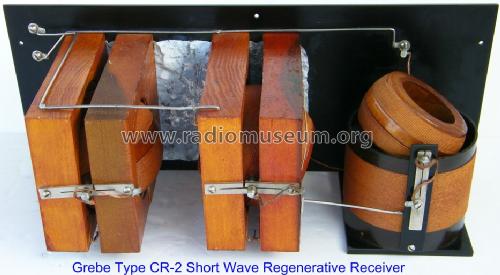

1920 Grebe Type CR-2 Short Wave Regenerative Receiver

Country:  United States of America (USA)
Manufacturer / Brand:  Grebe, A.H. & Co.; Richmond Hill (NY)
Brand

Synchrophase
Year: 1920 Category: Radio module pre 1926 (not a part, not a key)
Main principle Tuner pre 1926 (not a wave trap)
Wave bands Broadcast only (MW).
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: CR2 - Grebe, A.H. & Co.; Richmond
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 16.75 x 7 x 7.5 inch / 425 x 178 x 191 mm
Notes

Short-Wave Regenerative Receiver Type CR-2. Wave-length range 170 to 580/600 meters.

The unit as such is not a complete Regenerative Receiver! To employ regeneration it requires a vacuum tube unit, e.g.Type RORH, this may be used to advantage with the CR-2, as their terminals correspond and permit the use of straight, short, bus connections.

Net weight (2.2 lb = 1 kg) 11 lb (11 lb 0 oz) / 4.994 kg
Price in first year of sale 46.00 $
Collectors' prices
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932
Circuit diagram reference Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (1) Radio Manufacturers of the 1920's, Vol. 2
Literature/Schematics (4) February, 1920 A. H. Grebe & Co. Bulletin R-102
