CR2 Binding Posts on Top of Front Panel

Grebe, A.H. & Co.; Richmond Hill (NY)

Data
Forum
Pictures
Collections

  • Year
  • 1919
  • Category
  • Radio module pre 1926 (not a part, not a key)
  • Radiomuseum.org ID
  • 214011
    • Brand: Synchrophase

 Technical Specifications

  • Main principle
  • Tuner pre 1926 (not a wave trap)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: CR2 [Binding Posts on Top of Front Panel] - Grebe, A.H. & Co.; Richmond
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Dimensions (WHD)
  • 17 x 7 x 7.5 inch / 432 x 178 x 191 mm
  • Notes
  • Grebe Short-Wave Regenerative Receiver Type CR-2
    Wavelength range: 170 to 600 meters
    This is the first version of the Type CR-2 receiver with the binding posts on the top of the front panel.
  • Price in first year of sale
  • 46.00 $
  • Literature/Schematics (1)

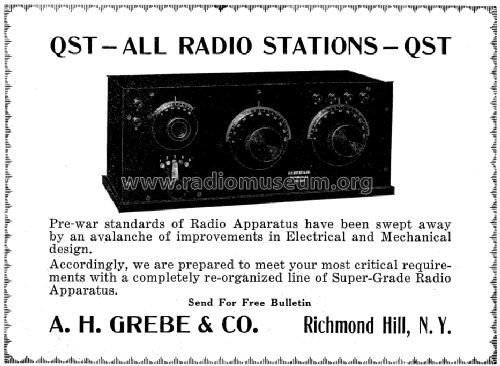

  • November 1919 QST magazine page 57
  • Author
  • Model page created by Alan Larsen. See "Data change" for further contributors.
