For model RORH, Grebe, A.H. & Co.; Richmond Hill (NY):
The Grebe RORH Vacuum Tube Unit was introduced in 1920.

Country:  United States of America (USA)
Manufacturer / Brand:  Grebe, A.H. & Co.; Richmond Hill (NY)
Brand

Synchrophase
Year: 1920 Category: Radio module pre 1926 (not a part, not a key)
Valves / Tubes 1: VT-Class-I or B_Moorhead-Shaw
Main principle Detector with Vacuum Tube (Valve), no tuner
Wave bands - without
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: RORH - Grebe, A.H. & Co.; Richmond
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).

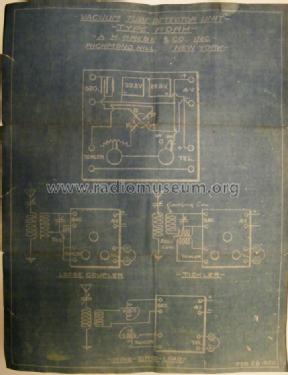

Notes Needs external tuner. Both tubes listed are using a UV base, but other than later UV tubes the filament contacts are opposite, not adjacent. Schematics show a 4 Volt filament supply.
Price in first year of sale 17.00 $
Collectors' prices
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
Mentioned in Radio Manufacturers of the 1920's, Vol. 2


All listed radios etc. from Grebe, A.H. & Co.; Richmond Hill (NY)
Here you find 186 models, 114 with images and 59 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Grebe, A.H. & Co.;: RORH
Threads: 1 | Posts: 1
Hits: 1481     Replies: 0
grebe: RORH
Alan Larsen
19.Sep.10
  1

Greetings,

The tube used was likely a Marconi/deForest Audion as that was the only tube that was advertised in the Mesco catalog. The Type 1 Marconi V.T. Detector tube advertised with the RORH sold for $14 in 1921
