• Country
• Italy

• Manufacturer / Brand
• Gretzen; (dove/where?)

• Year
• 1965

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 254298

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6BE6 6BA6 6AT6 35D5 35X4

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

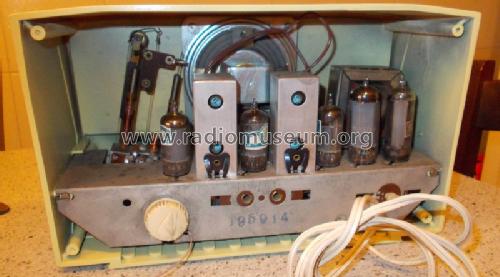

• Model: Calypso/P - Gretzen; dove/where?

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 265 x 155 x 125 mm / 10.4 x 6.1 x 4.9 inch

• Notes

• Ivory color case.

  Ingresso FONO. Scatola di montaggio.

• Price in first year of sale
• 7,500.00 ITL

• Mentioned in
• Rivista "Tecnica pratica" 1965-08.

• Author
• Model page created by Mauro Musso. See "Data change" for further contributors.

• Other Models

• Here you find 4 models, 4 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Gretzen; (dove/where?)
