• Country
• United States of America (USA)

• Manufacturer / Brand
• Grigsby-Grunow (-Hinds) Co. (Majestic pre 1933); Chicago (IL)

• Year
• 1931

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 163469

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 51 27 51 51 27 45 45 80

• Main principle
• Superhet with RF-stage; ZF/IF 175 kHz; Screengrid 1926-1935

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• from Radiomuseum.org

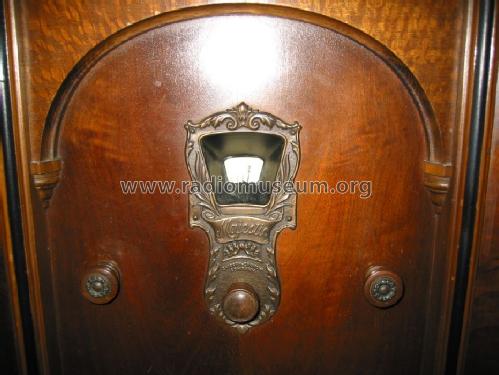

• Model: Majestic 23 Ch= 20 - Grigsby-Grunow -Hinds Co.

• Notes
• Push-pull af output stage. Introduced in January 1931.

• Price in first year of sale
• 119.50 $

• Source of data
• Rider's Perpetual, Volume 1 = 1931/1934 (1919 to 1931)

• Author
• Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
