Majestic 344 Ch= 340 (340-B)

Majestic 344 Ch= 340 ; Grigsby-Grunow - (ID = 671530) Radio

Majestic 344 Ch= 340 ; Grigsby-Grunow - (ID = 671531) Radio
Majestic 344 Ch= 340 ; Grigsby-Grunow - (ID = 1659441) Radio Majestic 344 Ch= 340 ; Grigsby-Grunow - (ID = 1659442) Radio
Majestic 344 Ch= 340 ; Grigsby-Grunow - (ID = 933829) Radio Majestic 344 Ch= 340 ; Grigsby-Grunow - (ID = 1130558) Radio
Use red slider bar for more.
Majestic 344 Ch= 340 ; Grigsby-Grunow - (ID = 1659441) Radio
Grigsby-Grunow -: Majestic 344 Ch= 340 [Radio] ID = 1659441 903x1400
Select picture or schematic to display from thumbnails on the right and click for download.
For model Majestic 344 Ch= 340 (340-B), Grigsby-Grunow (-Hinds) Co. (Majestic pre 1933); Chicago (IL):

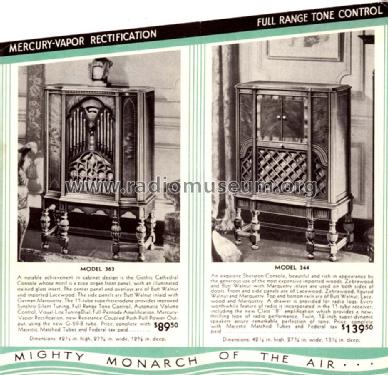

Scanned from the Grigsby-Grunow Co. Folder for 1933 for Majestic Radios.

Country:  United States of America (USA)
Manufacturer / Brand:  Grigsby-Grunow (-Hinds) Co. (Majestic pre 1933); Chicago (IL)
Year: 1933 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 11: 58 58 56 58 55 57 57 59 59 59 82
Main principle Superhet with RF-stage; ZF/IF 175 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
Power out
from Radiomuseum.org Model: Majestic 344 Ch= 340 - Grigsby-Grunow -Hinds Co.
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 27.75 x 42.25 x 13.25 inch / 705 x 1073 x 337 mm
Notes

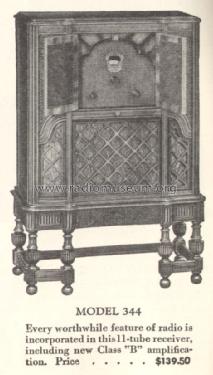

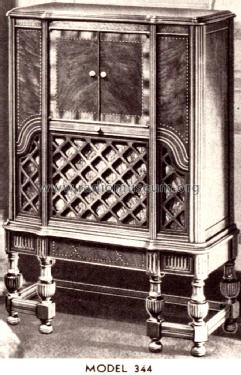

6 legged lowboy with stretcher base.
Introduced Feb. 1933. Uses one or more spray shield tubes; tuning light; push-pull af output stage; two speakers; mentioned in Rider´s index.

Price in first year of sale 139.50 $

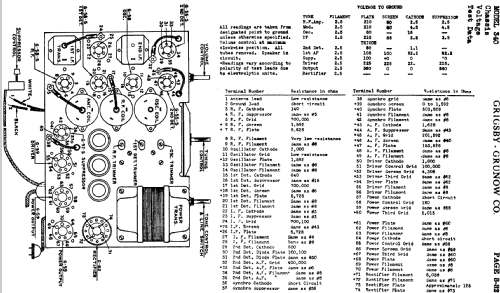

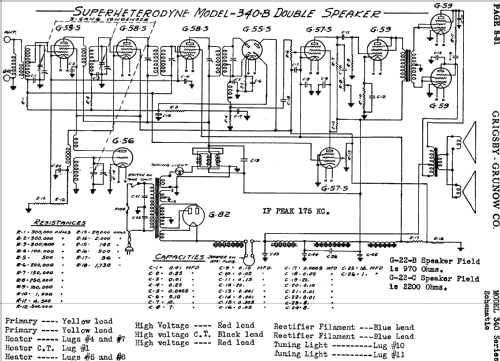

Circuit diagram reference Rider's Perpetual, Volume 3 = 1933 and before
Literature/Schematics (1) Pre-War Consoles
Literature/Schematics (3) The Grigsby-Grunow Co. Folder for 1933 for Majestic Radios.

Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
