Majestic Super-Dynamic Speaker G-2

Majestic Super-Dynamic Speaker G-2; Grigsby-Grunow - (ID = 1778365) Speaker-P Majestic Super-Dynamic Speaker G-2; Grigsby-Grunow - (ID = 1778366) Speaker-P

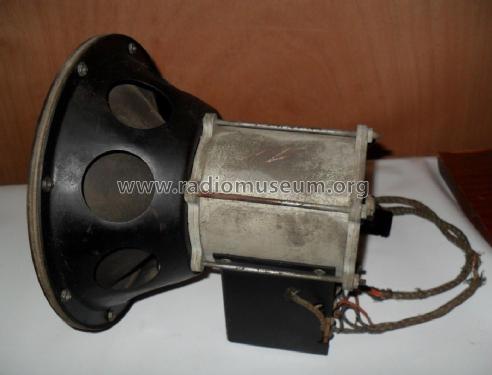

Majestic Super-Dynamic Speaker G-2; Grigsby-Grunow - (ID = 1778367) Speaker-P Majestic Super-Dynamic Speaker G-2; Grigsby-Grunow - (ID = 1778369) Speaker-P

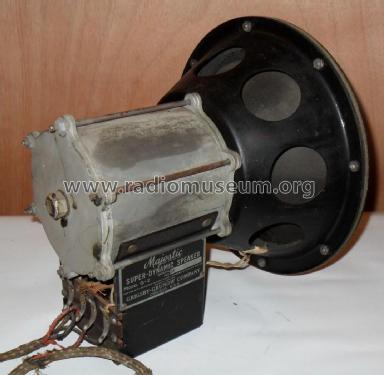

Majestic Super-Dynamic Speaker G-2; Grigsby-Grunow - (ID = 1778370) Speaker-P Majestic Super-Dynamic Speaker G-2; Grigsby-Grunow - (ID = 1778372) Speaker-P
Majestic Super-Dynamic Speaker G-2; Grigsby-Grunow - (ID = 1778374) Speaker-P
Use red slider bar for more.
Majestic Super-Dynamic Speaker G-2; Grigsby-Grunow - (ID = 1778365) Speaker-P
Grigsby-Grunow -: Majestic Super-Dynamic Speaker G-2 [Speaker-P] ID = 1778365 1052x1055
Select picture or schematic to display from thumbnails on the right and click for download.
For model Majestic Super-Dynamic Speaker G-2, Grigsby-Grunow (-Hinds) Co. (Majestic pre 1933); Chicago (IL):
Ebay auction by user retrotechcity 151502833000

Country:  United States of America (USA)
Manufacturer / Brand:  Grigsby-Grunow (-Hinds) Co. (Majestic pre 1933); Chicago (IL)
Year: 1930 ?? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage Powered by external power supply or a main unit.
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Majestic Super-Dynamic Speaker G-2 - Grigsby-Grunow -Hinds Co.
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 9 x 9 x 7.5 inch / 229 x 229 x 191 mm
Notes

For use with Receiver Chassis model numbers 70-B, 90, 100 and 180.

~ 22 Ohms impedance.

~ 2.5 kOhms coil.

Net weight (2.2 lb = 1 kg) 13 lb 0 oz (13 lb) / 5.902 kg

Model page created by a member from A. See "Data change" for further contributors.
