Majestic 102 Ch= 100-B

Majestic 102 Ch= 100-B; Grigsby-Grunow - (ID = 677096) Radio
Majestic 102 Ch= 100-B; Grigsby-Grunow - (ID = 1130537) Radio Majestic 102 Ch= 100-B; Grigsby-Grunow - (ID = 2207577) Radio
Majestic 102 Ch= 100-B; Grigsby-Grunow - (ID = 2207579) Radio Majestic 102 Ch= 100-B; Grigsby-Grunow - (ID = 2207580) Radio
Use red slider bar for more.
Majestic 102 Ch= 100-B; Grigsby-Grunow - (ID = 1130537) Radio
Grigsby-Grunow -: Majestic 102 Ch= 100-B [Radio] ID = 1130537 435x669
Select picture or schematic to display from thumbnails on the right and click for download.
For model Majestic 102 Ch= 100-B, Grigsby-Grunow (-Hinds) Co. (Majestic pre 1933); Chicago (IL):
Image Courtesy of Mark V. Stein for Radiomuseum.org use only.

Country:  United States of America (USA)
Manufacturer / Brand:  Grigsby-Grunow (-Hinds) Co. (Majestic pre 1933); Chicago (IL)
Year: 1930 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 27 27 27 27 27 45 45 80
Main principle Special principle (see notes)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 105; 115; 125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Majestic 102 Ch= 100-B - Grigsby-Grunow -Hinds Co.
Material Wooden case

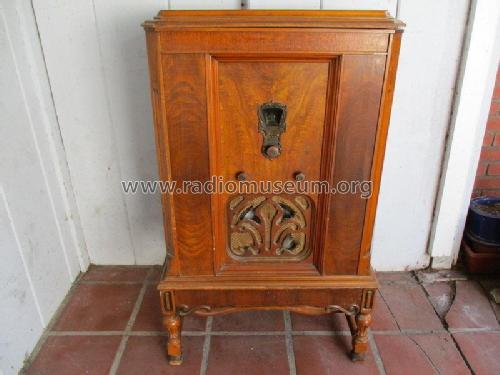

Shape Console, Lowboy (legs < 50 %).
Notes 4 legged lowboy with stretcher base.
One dial (primary tuning control knob) This set uses the push-pull output circuit with the two 45 tubes.
Price in first year of sale 184.00 $
Collectors' prices
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932
Circuit diagram reference Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (1) Pre-War Consoles
Literature/Schematics (2) Radio Broadcast, Apr 1930, p. 354
