• Country
• United States of America (USA)

• Manufacturer / Brand
• Grigsby-Grunow (-Hinds) Co. (Majestic pre 1933); Chicago (IL)

• Year
• 1932

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 43596

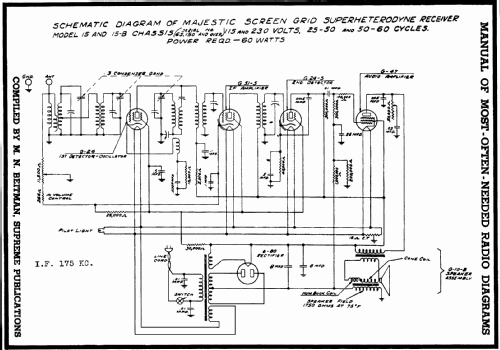

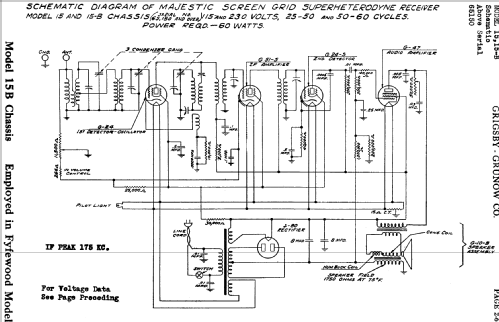

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 24 51 24 47 80

• Main principle
• Superheterodyne (common); ZF/IF 175 kHz; Screengrid 1926-1935

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 115; 230 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Metal case

• from Radiomuseum.org
• Model: Majestic Ch= 15 - Grigsby-Grunow -Hinds Co.

• Shape
• Chassis only or for «building in»

• Notes
• Uses one or more spray shield tubes; chassis 15 is employed in Sherwood, Ellswood and Havenwood models.

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 2 = 1932 (Models 1931/1932)
