Majestic Ch= 15-B

Majestic Ch= 15-B; Grigsby-Grunow - (ID = 216623) Radio

Majestic Ch= 15-B; Grigsby-Grunow - (ID = 674764) Radio

Majestic Ch= 15-B; Grigsby-Grunow - (ID = 674765) Radio

Majestic Ch= 15-B; Grigsby-Grunow - (ID = 674766) Radio
Use red slider bar for more.
Majestic Ch= 15-B; Grigsby-Grunow - (ID = 216623) Radio

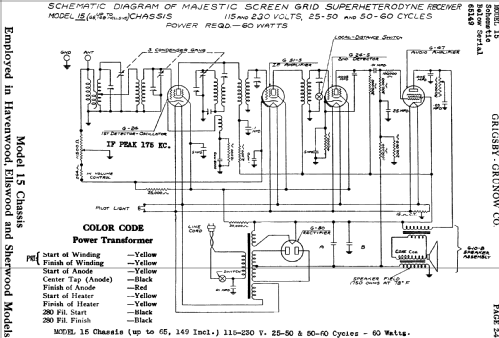

Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Grigsby-Grunow (-Hinds) Co. (Majestic pre 1933); Chicago (IL)
Year: 1932 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 24 51 24 47 80
Main principle Super-Heterodyne (Super in general); ZF/IF 175 kHz; Screengrid 1926-1935
Tuned circuits 5 AM circuit(s)
Details
Power type and voltage Alternating Current supply (AC) / 115; 230 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Majestic Ch= 15-B - Grigsby-Grunow -Hinds Co.
Material Metal case
Shape Chassis only or for «building in»
Notes Uses one or more spray shield tubes; chassis 15B is employed in the Fyfewood model.
Collectors' prices
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 2 = 1932 (Models 1931/1932)
