Majestic Ch= 160

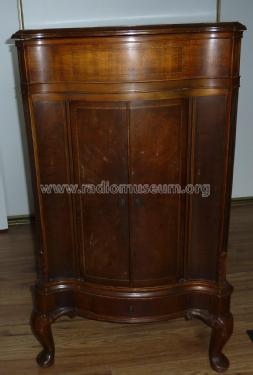

Majestic Ch= 160; Grigsby-Grunow - (ID = 216614) Radio

Majestic Ch= 160; Grigsby-Grunow - (ID = 676213) Radio

Majestic Ch= 160; Grigsby-Grunow - (ID = 676214) Radio
Use red slider bar for more.
Majestic Ch= 160; Grigsby-Grunow - (ID = 216614) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Grigsby-Grunow (-Hinds) Co. (Majestic pre 1933); Chicago (IL)
Year: 1931 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: 51 51 27 51 24 24 45 45 80
Main principle Superhet with RF-stage; ZF/IF 175 kHz; Screengrid 1926-1935
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast only (MW).
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 105; 115; 125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Majestic Ch= 160 - Grigsby-Grunow -Hinds Co.
Material Metal case
Shape Chassis only or for «building in»
Notes Tuning meter; push-pull af output stage; alternative voltages: 200, 220 and 240 V.
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
Literature/Schematics (1) Beitman Radio Diagrams, Vol. 01, 1926-1938
