Majestic 61 Ch= 60

Majestic 61 Ch= 60; Grigsby-Grunow - (ID = 676562) Radio

Majestic 61 Ch= 60; Grigsby-Grunow - (ID = 676563) Radio

Majestic 61 Ch= 60; Grigsby-Grunow - (ID = 676564) Radio

Majestic 61 Ch= 60; Grigsby-Grunow - (ID = 676565) Radio
Majestic 61 Ch= 60; Grigsby-Grunow - (ID = 2290363) Radio Majestic 61 Ch= 60; Grigsby-Grunow - (ID = 2290364) Radio
Majestic 61 Ch= 60; Grigsby-Grunow - (ID = 2290365) Radio Majestic 61 Ch= 60; Grigsby-Grunow - (ID = 54923) Radio
Majestic 61 Ch= 60; Grigsby-Grunow - (ID = 1130523) Radio
Use red slider bar for more.
Majestic 61 Ch= 60; Grigsby-Grunow - (ID = 2290363) Radio
Grigsby-Grunow -: Majestic 61 Ch= 60 [Radio] ID = 2290363 1400x2094
Select picture or schematic to display from thumbnails on the right and click for download.
For model Majestic 61 Ch= 60, Grigsby-Grunow (-Hinds) Co. (Majestic pre 1933); Chicago (IL)

Country:  United States of America (USA)
Manufacturer / Brand:  Grigsby-Grunow (-Hinds) Co. (Majestic pre 1933); Chicago (IL)
Year: 1931 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: 51 51 27 51 24 24 45 45 80
Main principle Superhet with RF-stage; ZF/IF 175 kHz; Screengrid 1926-1935
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 105; 115; 125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Majestic 61 Ch= 60 - Grigsby-Grunow -Hinds Co.
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes 4 legged lowboy with stretcher base.

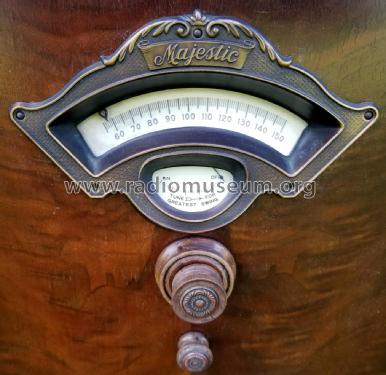

Tuning meter; push-pull af output stage; alternative voltages: 200, 220 and 240 V.
Price in first year of sale 85.00 $
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932
Circuit diagram reference Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (1) Pre-War Consoles


All listed radios etc. from Grigsby-Grunow (-Hinds) Co. (Majestic pre 1933); Chicago (IL)
Here you find 200 models, 118 with images and 156 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
