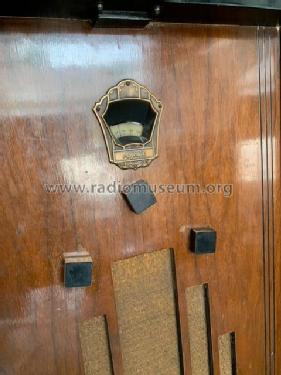

Majestic 85 Royale Ch= 800

Majestic 85 Royale Ch= 800; Grigsby-Grunow - (ID = 670028) Radio

Majestic 85 Royale Ch= 800; Grigsby-Grunow - (ID = 670029) Radio

Majestic 85 Royale Ch= 800; Grigsby-Grunow - (ID = 1139658) Radio
Majestic 85 Royale Ch= 800; Grigsby-Grunow - (ID = 936207) Radio
Use red slider bar for more.
Majestic 85 Royale Ch= 800; Grigsby-Grunow - (ID = 936207) Radio
Grigsby-Grunow -: Majestic 85 Royale Ch= 800 [Radio] ID = 936207 457x747
Select picture or schematic to display from thumbnails on the right and click for download.
For model Majestic 85 Royale Ch= 800, Grigsby-Grunow (-Hinds) Co. (Majestic pre 1933); Chicago (IL):
Radio Retailing, Sept. 1933

Country:  United States of America (USA)
Manufacturer / Brand:  Grigsby-Grunow (-Hinds) Co. (Majestic pre 1933); Chicago (IL)
Year: 1933 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 58 2A7 58 4S 4S 56 53 80
Main principle Superhet with RF-stage; ZF/IF 175 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Majestic 85 Royale Ch= 800 - Grigsby-Grunow -Hinds Co.
Material Wooden case
Shape Console with any shape - in general
Notes Introduced Sept. 1933
Price in first year of sale 124.50 $
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 4 = ca. 1934 and before
