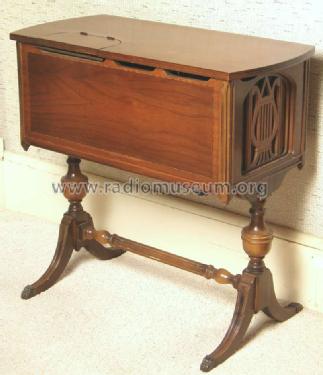

Majestic Fyfewood 154 Ch= 15-B; Grigsby-Grunow - (ID = 1126240) Radio
Grigsby-Grunow -: Majestic Fyfewood 154 Ch= 15-B [Radio] ID = 1126240 804x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model Majestic Fyfewood 154 Ch= 15-B, Grigsby-Grunow (-Hinds) Co. (Majestic pre 1933); Chicago (IL)

Country:  United States of America (USA)
Manufacturer / Brand:  Grigsby-Grunow (-Hinds) Co. (Majestic pre 1933); Chicago (IL)
Year: 1931 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 24 51 24 47 80
Main principle Superheterodyne (common); ZF/IF 175 kHz; Screengrid 1926-1935
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 115; 230 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Majestic Fyfewood 154 Ch= 15-B - Grigsby-Grunow -Hinds Co.
Material Wooden case
Shape Miscellaneous shapes - described under notes.
Notes

Introduced September 1931 uses one or more spray shield tubes. This is an "End-Table-Model".

Price in first year of sale 64.50 $
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932
Circuit diagram reference Rider's Perpetual, Volume 2 = 1932 (Models 1931/1932)
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965

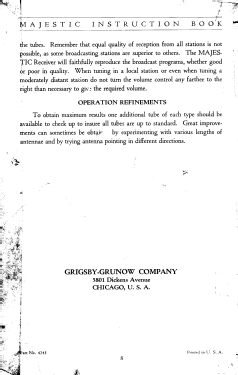

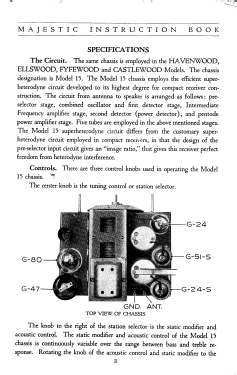

Literature/Schematics (3) The Grigsby-Grunow Co. Folder for 1931 for Majestic Radios.
