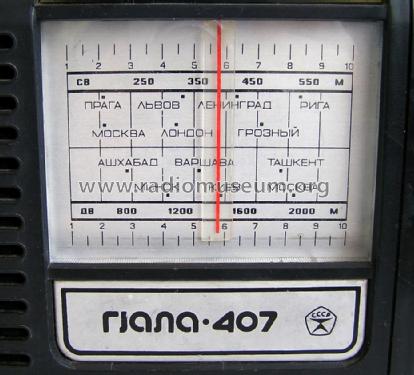

Gjala - Гиала 407; Grozny SINTAR (ID = 1185749) Radio Gjala - Гиала 407; Grozny SINTAR (ID = 1185750) Radio

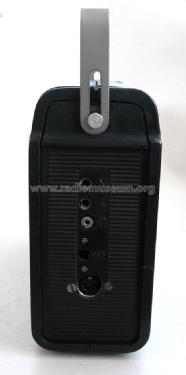

Gjala - Гиала 407; Grozny SINTAR (ID = 1185751) Radio Gjala - Гиала 407; Grozny SINTAR (ID = 1185752) Radio

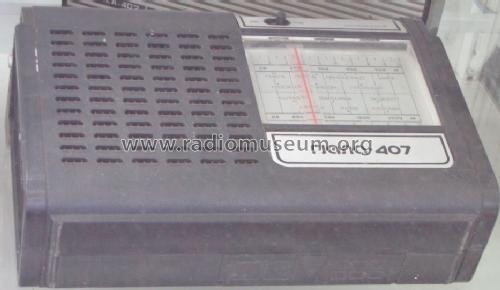

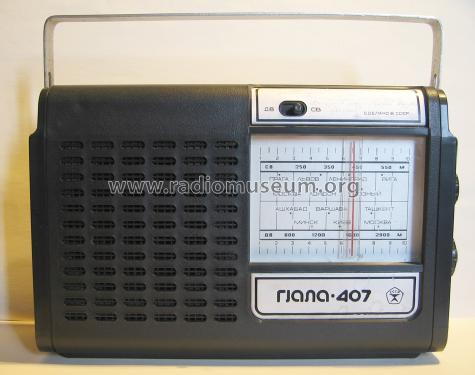

Gjala - Гиала 407; Grozny SINTAR (ID = 1289362) Radio Gjala - Гиала 407; Grozny SINTAR (ID = 1502362) Radio

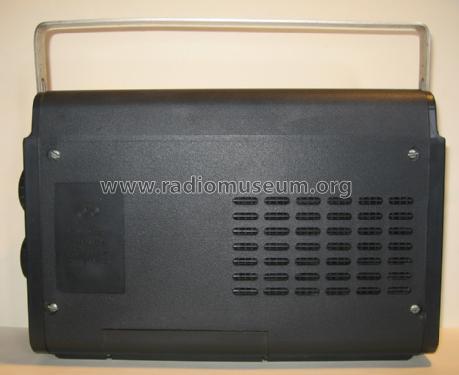

Gjala - Гиала 407; Grozny SINTAR (ID = 1502363) Radio Gjala - Гиала 407; Grozny SINTAR (ID = 1502364) Radio
Use red slider bar for more.

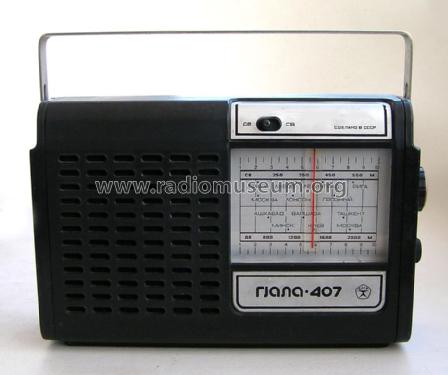

Gjala - Гиала 407; Grozny SINTAR (ID = 1185749) Radio
Grozny SINTAR: Gjala - Гиала 407 [Radio] ID = 1185749 933x780
Select picture or schematic to display from thumbnails on the right and click for download.
For model Gjala (Giala) - Гиала 407, Grozny SINTAR Radiotechnical Works

Country:  Soviet Union
Manufacturer / Brand:  Grozny SINTAR Radiotechnical Works
Year: 1977–1979 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: КТ315 КТ315 КТ315 КТ315 КТ315 КТ315 КТ361 КТ315 ГТ402 ГТ404
Main principle Superheterodyne (common); ZF/IF 465 kHz; 4 AF stage(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.4 W (unknown quality)
from Radiomuseum.org Model: Gjala - Гиала 407 - Grozny SINTAR Radiotechnical
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 264 x 170 x 78 mm / 10.4 x 6.7 x 3.1 inch
Net weight (2.2 lb = 1 kg) 1.4 kg / 3 lb 1.3 oz (3.084 lb)
Price in first year of sale 30.00 Rubel
