• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke)

• Year
• 1979 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 167134

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 370DLB22-TC03

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

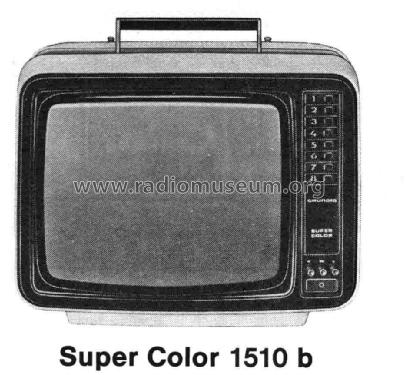

• Model: Super Color 1510b - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 450 x 330 x 360 mm / 17.7 x 13 x 14.2 inch

• Notes

• Weiterentwicklung des Super Color 1510a mit anderem Gehäuse
  37 cm Farbbildröhre, 90° Inline-Schlitzmaske.
  Total halbleiterbestücktes Multi-Modulchassis.
  VHF/UHF Allbereichs-Tuner mit Diodenabstimmung.
  Programmwahl mit 8 Tipptasten, Leuchtanzeige.

• Net weight (2.2 lb = 1 kg)
• 14 kg / 30 lb 13.4 oz (30.837 lb)

• Source of data
• -- Original-techn. papers.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
