WKC 2049VD

WKC 2049VD; Grundig Radio- (ID = 2383519) Car Radio WKC 2049VD; Grundig Radio- (ID = 614727) Car Radio
WKC 2049VD; Grundig Radio- (ID = 2082900) Car Radio WKC 2049VD; Grundig Radio- (ID = 2082901) Car Radio
Use red slider bar for more.

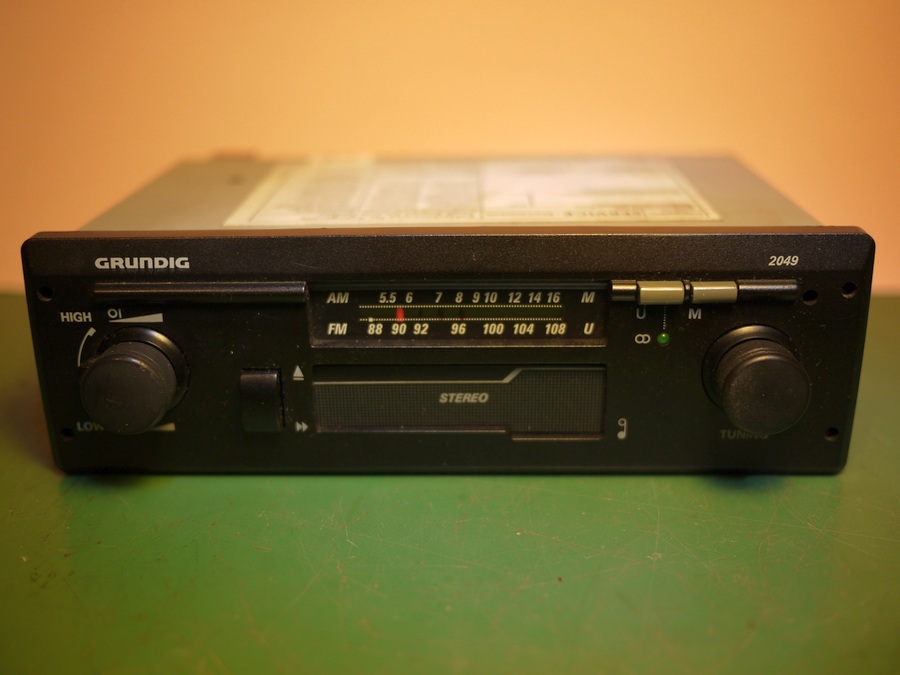

WKC 2049VD; Grundig Radio- (ID = 2383519) Car Radio
Grundig Radio-: WKC 2049VD [Car Radio] ID = 2383519 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model WKC 2049VD, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1990/1991 Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast (BC) and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Storage and/or dry batteries / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: WKC 2049VD - Grundig Radio-Vertrieb, RVF,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 179 x 51 x 110 mm / 7 x 2 x 4.3 inch
Notes Grundig 2049 VD;
Stereo, Handabstimmung mit Skala, Verkehrsfunk, Tonregler, 2 x 16(8) W.
Mentioned in -- Original prospect or advert ((D) Grundig Car Audio 1990/91)

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke)
Here you find 5975 models, 5183 with images and 4027 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Grundig Radio-: WKC 2049VD
Threads: 1 | Posts: 2
Hits: 2055     Replies: 1
grundig: 2049VD;
Gianluigi Miazzi
27.Jan.13
  1

Buonasera,

sono in possesso di un modello WKC 2049 della Grundig costruito in Portogallo e non so se sia una variante del modello 2049 VD o viceversa. In apparenza sono molto simili tranne che per il comando "VF" posto al di sopra della manopola dell'interruttore.

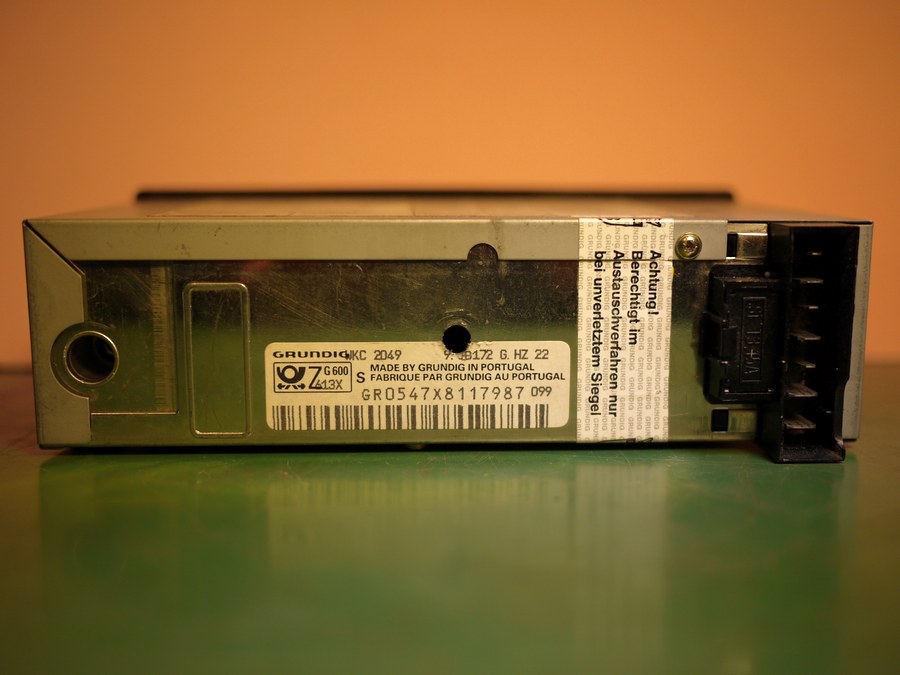

Invio in allegato due foto del modello in mio possesso.

Rimango in attesa di conferma.

Ringraziando, invio i migliori saluti.

Gianluigi Miazzi

Attachments

Mark Hippenstiel
05.Jun.13
  2

Hello Gianluigi,

please create a new model for this radio. There are differences, e.g. the WKZ2049 does not have traffic assisst.

We can move your pictures later on.

Thanks and regards
Mark


Grundig Radio-: WKC 2049VD
