• Year
  • 1995
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 179549
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

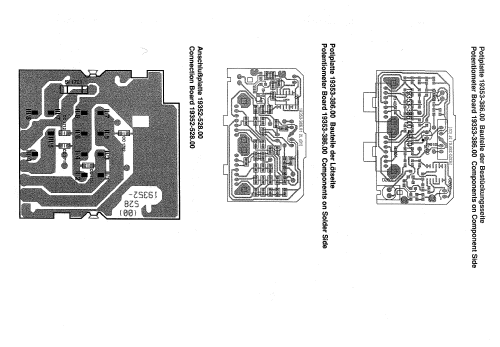

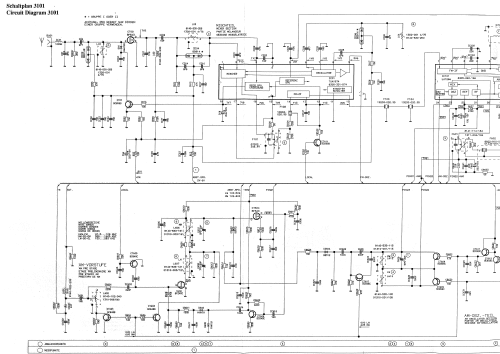

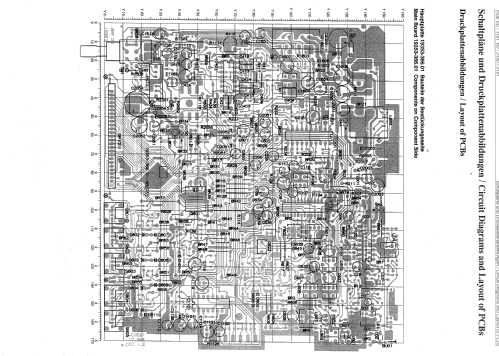

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 41
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 8 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: 3101 - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Chassis only or for «building in»
  • Notes
  • Der Autoempfänger 3101 entspricht in seinem Empfangsteil dem 3100, hat aber ein Kassettenlaufwerk für Autoreversebetrieb. Die Ausgangsleistung beträgt 2 x 4 Watt.
  • Source of data
  • - - Manufacturers Literature
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
