3870 RDS Reverse

3870 RDS Reverse; Grundig Radio- (ID = 2113260) Car Radio 3870 RDS Reverse; Grundig Radio- (ID = 2559431) Car Radio
Use red slider bar for more.
3870 RDS Reverse; Grundig Radio- (ID = 2113260) Car Radio

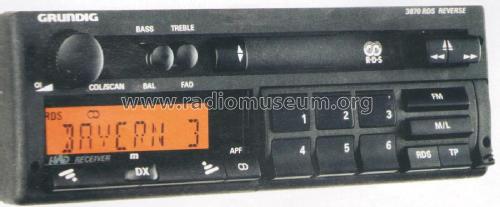

Grundig Radio-: 3870 RDS Reverse [Car Radio] ID = 2113260 1400x581
Select picture or schematic to display from thumbnails on the right and click for download.
For model 3870 RDS Reverse, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Foto Catalogo Grundig

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1992 Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle PLL, Phase-locked loop
Wave bands Broadcast, Long Wave and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 80 W (max.)
from Radiomuseum.org Model: 3870 RDS Reverse - Grundig Radio-Vertrieb, RVF,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 179 x 51 x 110 mm / 7 x 2 x 4.3 inch
Notes

Grundig Car Radio 3870 RDS Reverse; RDS system, FM stereo, MW, LW, PLL system, 30 presets, RDS EON (enhanced other network), RDS scan function, multifunction liquid crystal  vario color, last station memory, Cassette deck autoreverse mechanism with indication of direction, fast forward and reverse, tape type selector Fe and Cr/Me, autoreverse soft touch, key off, separate bass and treble controls, fader, stereo balance regulator, loudness, preset scan, 4x 20 W musical power, 4 speakers outputs, double security with detachable front.

Mentioned in - - Manufacturers Literature (Catalogo grundig 1992, page 116)

Model page created by Manuel Albano Neves. See "Data change" for further contributors.
