850/3D

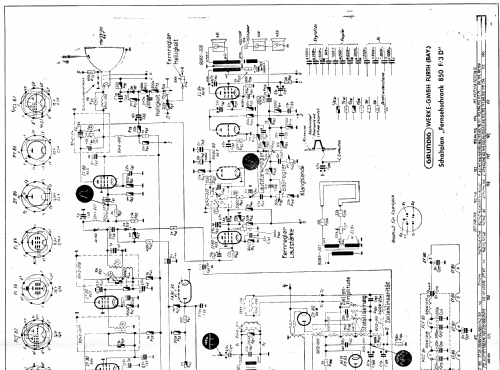

850/3D; Grundig Radio- (ID = 1103885) TV Radio

850/3D; Grundig Radio- (ID = 1103889) TV Radio
850/3D; Grundig Radio- (ID = 256) TV Radio
Use red slider bar for more.
850/3D; Grundig Radio- (ID = 256) TV Radio

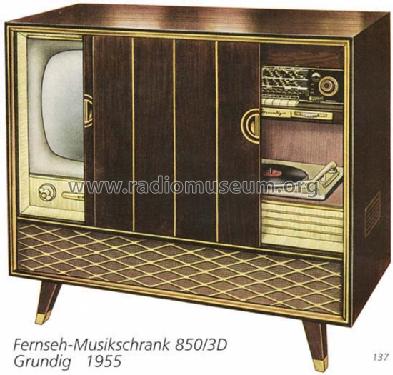

Grundig Radio-: 850/3D [TV Radio] ID = 256 551x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model 850/3D, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1955/1956 Category: Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
Main principle Superheterodyne (common); ZF/IF 468 kHz
Wave bands Wave Bands given in the notes.
Details Changer (Record changer); Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: 850/3D - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 1250 x 1000 x 500 mm / 49.2 x 39.4 x 19.7 inch
Notes 12 Kanäle im VHF-Bereich. Rundfunkteil: Chassis 3035W/3D (Einbauchassis 3080).
Price in first year of sale 2'150.00 DM
Source of data HdB d.Rdf-& Ferns-GrH 1955/56 / Radiokatalog Band 1, Ernst Erb
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke)
Here you find 6057 models, 5282 with images and 4090 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
