Ableitstrom-Meßgerät JM1

Ableitstrom-Meßgerät JM1; Grundig Radio- (ID = 293084) Equipment Ableitstrom-Meßgerät JM1; Grundig Radio- (ID = 293085) Equipment
Ableitstrom-Meßgerät JM1; Grundig Radio- (ID = 293086) Equipment Ableitstrom-Meßgerät JM1; Grundig Radio- (ID = 293087) Equipment

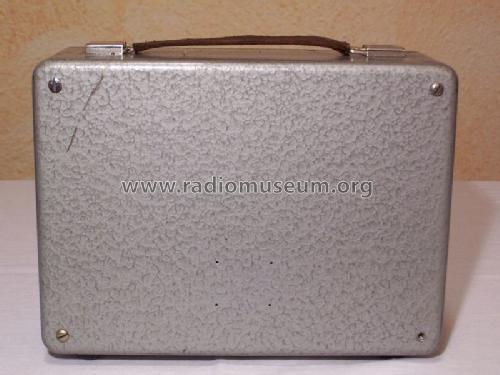

Ableitstrom-Meßgerät JM1; Grundig Radio- (ID = 293088) Equipment Ableitstrom-Meßgerät JM1; Grundig Radio- (ID = 1106278) Equipment
Ableitstrom-Meßgerät JM1; Grundig Radio- (ID = 1106786) Equipment
Use red slider bar for more.
Ableitstrom-Meßgerät JM1; Grundig Radio- (ID = 293084) Equipment
Grundig Radio-: Ableitstrom-Meßgerät JM1 [Equipment] ID = 293084 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Ableitstrom-Meßgerät JM1, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1955 ? Category: Service- or Lab Equipment
Valves / Tubes 2: EF40 EF40 STV150/15
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 200-240 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Ableitstrom-Meßgerät JM1 - Grundig Radio-Vertrieb, RVF,
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 260 x 210 x 105 mm / 10.2 x 8.3 x 4.1 inch
Notes Messbereiche:
0...8/25/80/250/800µA
0...2,5/8/25/80/250mA
0...500V
Re Strombereich 2kOhm
Re Spannungs " 950kOhm
Überlastbarkeit bis zum 1000fachen Endwert , max 250mA bzw. 1kV.
Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)
Price in first year of sale 485.00 DM

Model page created by a member from D. See "Data change" for further contributors.
