Aktiv Box High Fidelity XM 400

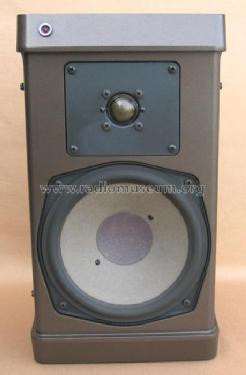

Aktiv Box High Fidelity XM 400; Grundig Radio- (ID = 413796) Speaker-P Aktiv Box High Fidelity XM 400; Grundig Radio- (ID = 413797) Speaker-P

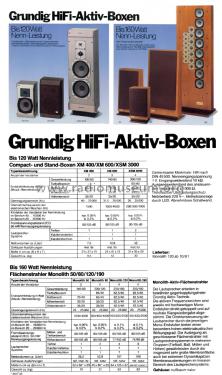

Aktiv Box High Fidelity XM 400; Grundig Radio- (ID = 413798) Speaker-P Aktiv Box High Fidelity XM 400; Grundig Radio- (ID = 2093405) Speaker-P

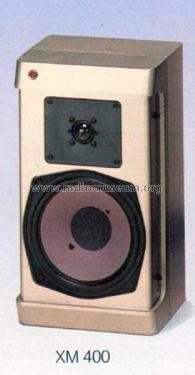

Aktiv Box High Fidelity XM 400; Grundig Radio- (ID = 2093408) Speaker-P Aktiv Box High Fidelity XM 400; Grundig Radio- (ID = 2093404) Speaker-P
Use red slider bar for more.
Aktiv Box High Fidelity XM 400; Grundig Radio- (ID = 413796) Speaker-P
Grundig Radio-: Aktiv Box High Fidelity XM 400 [Speaker-P] ID = 413796 482x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Aktiv Box High Fidelity XM 400, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1980 ? Category: Loudspeaker, headphone or earphone
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 2 Loudspeakers
Power out 100 W (unknown quality)
from Radiomuseum.org Model: Aktiv Box High Fidelity XM 400 - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 205 x 365 x 190 mm / 8.1 x 14.4 x 7.5 inch
Notes Verstärker:2 Wege
Musikleistung: 100W
Nennleistung: 60W (Bass 40W, Höhen 20W)
Übertragungsbereich: 40 bis 25000Hz
Übernahmefrequenz: 1500Hz
Passender Vorverstärker MXV 100, Tuner T 200.
Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)
Source of data - - Data from my own collection

Model page created by Rudolf Osterkamp. See "Data change" for further contributors.
