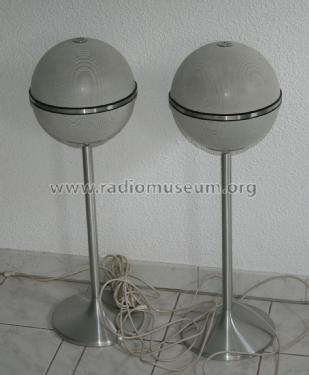

Audiorama 4000 HiFi

Audiorama 4000 HiFi; Grundig Radio- (ID = 2078069) Speaker-P

Audiorama 4000 HiFi; Grundig Radio- (ID = 2078070) Speaker-P

Audiorama 4000 HiFi; Grundig Radio- (ID = 2078071) Speaker-P

Audiorama 4000 HiFi; Grundig Radio- (ID = 2078072) Speaker-P
Audiorama 4000 HiFi; Grundig Radio- (ID = 95556) Speaker-P Audiorama 4000 HiFi; Grundig Radio- (ID = 95557) Speaker-P
Audiorama 4000 HiFi; Grundig Radio- (ID = 480137) Speaker-P Audiorama 4000 HiFi; Grundig Radio- (ID = 531985) Speaker-P
Audiorama 4000 HiFi; Grundig Radio- (ID = 531986) Speaker-P Audiorama 4000 HiFi; Grundig Radio- (ID = 543523) Speaker-P
Audiorama 4000 HiFi; Grundig Radio- (ID = 543525) Speaker-P Audiorama 4000 HiFi; Grundig Radio- (ID = 543526) Speaker-P
Audiorama 4000 HiFi; Grundig Radio- (ID = 543527) Speaker-P Audiorama 4000 HiFi; Grundig Radio- (ID = 1117742) Speaker-P
Use red slider bar for more.
Audiorama 4000 HiFi; Grundig Radio- (ID = 95556) Speaker-P
Grundig Radio-: Audiorama 4000 HiFi [Speaker-P] ID = 95556 525x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Audiorama 4000 HiFi, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1972–1975 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 4 Loudspeakers / Ø 13 cm = 5.1 inch
Power out
from Radiomuseum.org Model: Audiorama 4000 HiFi - Grundig Radio-Vertrieb, RVF,
Material Metal case
Dimensions (WHD) 250 x 800 x 250 mm / 9.8 x 31.5 x 9.8 inch
Notes Impedanz 4 Ohm, Belastbarkeit 25 W, Frequenzgang 45-20000 Hz, 2 Tieftöner, 2 Kalottenhochtöner 117 mm, Trompetenfuß, Zuleitung mit Stahlseil zum Aufhängen, Varianten: schwarz oder weiß
Net weight (2.2 lb = 1 kg) 6.8 kg / 14 lb 15.6 oz (14.978 lb)
Price in first year of sale 399.00 DM
Source of data Handbuch VDRG 1973/1974

Model page created by Peter Böhm. See "Data change" for further contributors.
