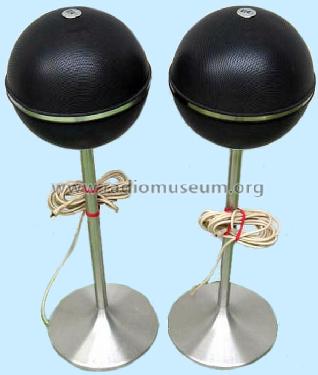

Audiorama 7000 HiFi

Audiorama 7000 HiFi; Grundig Radio- (ID = 1117741) Speaker-P

Audiorama 7000 HiFi; Grundig Radio- (ID = 1117745) Speaker-P

Audiorama 7000 HiFi; Grundig Radio- (ID = 1117746) Speaker-P

Audiorama 7000 HiFi; Grundig Radio- (ID = 2078077) Speaker-P

Audiorama 7000 HiFi; Grundig Radio- (ID = 2078078) Speaker-P

Audiorama 7000 HiFi; Grundig Radio- (ID = 2078079) Speaker-P

Audiorama 7000 HiFi; Grundig Radio- (ID = 2078080) Speaker-P
Audiorama 7000 HiFi; Grundig Radio- (ID = 318226) Speaker-P Audiorama 7000 HiFi; Grundig Radio- (ID = 408248) Speaker-P
Audiorama 7000 HiFi; Grundig Radio- (ID = 408249) Speaker-P Audiorama 7000 HiFi; Grundig Radio- (ID = 486894) Speaker-P
Audiorama 7000 HiFi; Grundig Radio- (ID = 491887) Speaker-P Audiorama 7000 HiFi; Grundig Radio- (ID = 528873) Speaker-P
Audiorama 7000 HiFi; Grundig Radio- (ID = 717147) Speaker-P
Use red slider bar for more.
Audiorama 7000 HiFi; Grundig Radio- (ID = 318226) Speaker-P
Grundig Radio-: Audiorama 7000 HiFi [Speaker-P] ID = 318226 372x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Audiorama 7000 HiFi, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1970–1974 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 7 or more Loudspeakers
Power out
from Radiomuseum.org Model: Audiorama 7000 HiFi - Grundig Radio-Vertrieb, RVF,
Material Metal case
Dimensions (WHD) 320 x 900 x 320 mm / 12.6 x 35.4 x 12.6 inch
Notes Impedanz 4 Ohm, Belastbarkeit 50 W, Frequenzgang 40- >20000 Hz, 4 Tieftöner 130 mm, 8 Hochtöner 88 mm, Kugelbox mit Dreifußständer, Deckenbefestigung mit Kette möglich, Farbvarianten: weiß/silber, schwarz/silber.
Net weight (2.2 lb = 1 kg) 13.5 kg / 29 lb 11.8 oz (29.736 lb)
Price in first year of sale 798.00 DM
Collectors' prices
Source of data Handbuch VDRG 1970/1971

Model page created by Lars Brötje. See "Data change" for further contributors.



All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke)
Here you find 5879 models, 5078 with images and 3964 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
