Automatic-Boy de Luxe 205

Automatic-Boy de Luxe 205; Grundig Radio- (ID = 61262) Radio

Automatic-Boy de Luxe 205; Grundig Radio- (ID = 61263) Radio

Automatic-Boy de Luxe 205; Grundig Radio- (ID = 61264) Radio

Automatic-Boy de Luxe 205; Grundig Radio- (ID = 61265) Radio

Automatic-Boy de Luxe 205; Grundig Radio- (ID = 61266) Radio

Automatic-Boy de Luxe 205; Grundig Radio- (ID = 647184) Radio
Automatic-Boy de Luxe 205; Grundig Radio- (ID = 296) Radio Automatic-Boy de Luxe 205; Grundig Radio- (ID = 559974) Radio
Automatic-Boy de Luxe 205; Grundig Radio- (ID = 559972) Radio Automatic-Boy de Luxe 205; Grundig Radio- (ID = 559971) Radio
Automatic-Boy de Luxe 205; Grundig Radio- (ID = 559976) Radio Automatic-Boy de Luxe 205; Grundig Radio- (ID = 1112209) Radio
Automatic-Boy de Luxe 205; Grundig Radio- (ID = 1112210) Radio
Use red slider bar for more.

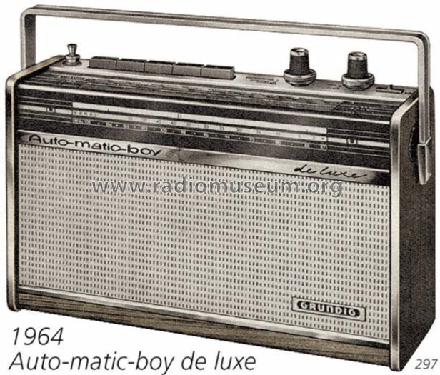

Automatic-Boy de Luxe 205; Grundig Radio- (ID = 296) Radio
Grundig Radio-: Automatic-Boy de Luxe 205 [Radio] ID = 296 617x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model Automatic-Boy de Luxe 205, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1964/1965 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11: AF102 AF125 AF121 AF126 AF126 AF126 AC125 AC125 AC126 AD148 AD148
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 5 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Automatic-Boy de Luxe 205 - Grundig Radio-Vertrieb, RVF,
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 320 x 190 x 100 mm / 12.6 x 7.5 x 3.9 inch

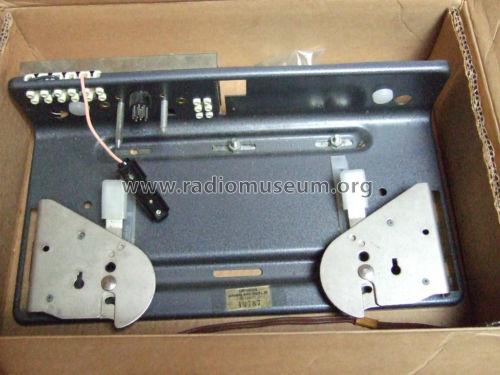

Notes Betrieb im Auto über Autohalterung (46,- DM) aus 6-V-Autobatterie (bei 12-V-Betrieb über 12-V-Transistoradapter) möglich, dann NF-Leistung 4 W.
Net weight (2.2 lb = 1 kg) 3.6 kg / 7 lb 14.9 oz (7.93 lb)
Price in first year of sale 520.00 DM
Source of data Handbuch VDRG 1964/1965 / Radiokatalog Band 1, Ernst Erb
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
