Auto-Aktiv-Box L/U 200 Hi Fi

Auto-Aktiv-Box L/U 200 Hi Fi; Grundig Radio- (ID = 1935787) Speaker-P

Auto-Aktiv-Box L/U 200 Hi Fi; Grundig Radio- (ID = 1935788) Speaker-P

Auto-Aktiv-Box L/U 200 Hi Fi; Grundig Radio- (ID = 2063208) Speaker-P
Auto-Aktiv-Box L/U 200 Hi Fi; Grundig Radio- (ID = 1935665) Speaker-P Auto-Aktiv-Box L/U 200 Hi Fi; Grundig Radio- (ID = 1935666) Speaker-P
Auto-Aktiv-Box L/U 200 Hi Fi; Grundig Radio- (ID = 2477717) Speaker-P Auto-Aktiv-Box L/U 200 Hi Fi; Grundig Radio- (ID = 2483910) Speaker-P
Use red slider bar for more.
Auto-Aktiv-Box L/U 200 Hi Fi; Grundig Radio- (ID = 1935665) Speaker-P
Grundig Radio-: Auto-Aktiv-Box L/U 200 Hi Fi [Speaker-P] ID = 1935665 1200x774
Select picture or schematic to display from thumbnails on the right and click for download.
For model Auto-Aktiv-Box L/U 200 Hi Fi, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Grundig Autoradios/CB-Funk Programm 78/79

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1978/1979 Category: Loudspeaker, headphone or earphone
Semiconductors (the count is only for transistors) 7: BC548 BC558 BC548 BC558 BCG238 BC559 BC328
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker 2 Loudspeakers
Power out 15 W (undistorted)
from Radiomuseum.org Model: Auto-Aktiv-Box L/U 200 Hi Fi - Grundig Radio-Vertrieb, RVF,
Material Various materials
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 220 x 145 x 121 mm / 8.7 x 5.7 x 4.8 inch
Notes

Zweiwege-Aktiv-Lautsprecherbox für Autos für Montage auf Ablage. 1 Tief-/Mitteltöner, 1 Kalottenhochtöner. Frequenzbereich 50...20000 Hz. NF-Verstärker mit 2 ICs; Nennleistung 15 Watt.

Mentioned in -- Original prospect or advert

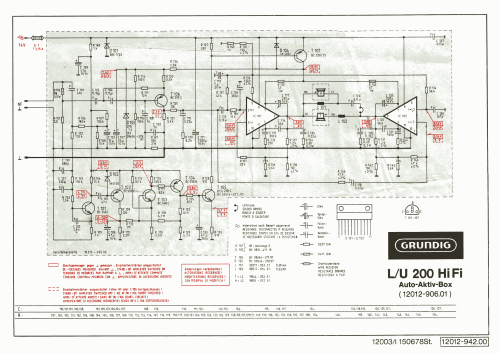

Literature/Schematics (1) -- Schematic

Model page created by Mark Hippenstiel. See "Data change" for further contributors.
